| Brand Name: | HSTECH |
| Model Number: | HS-801 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

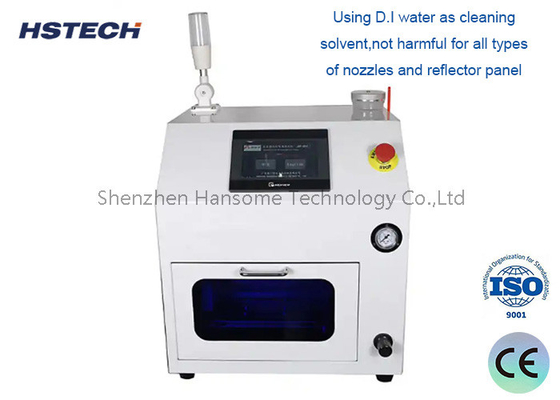

Touch Screen Control Max Clean 30 Nozzles Automatic SMT Nozzle Cleaning Machine
Introduction
The automatic nozzle cleaning machine can automatically complete the nozzle cleaning and drying process. It is mainly used to clean small components such as 0603, 0402, 0201, 01005 and other high-precision nozzles.
Fully automatic is the latest nozzle cleaning machine developed by our company. In the design process of this nozzle cleaning machine, we used our company's rich fluid equipment development experience, foresighted the development trend of the nozzle cleaning machine, and absorbed a lot of customers' opinions and suggestions. Its advent created the nozzle cleaning New concept of machine.
The machine uses Mitsubishi PLC as the control core, adopts modular control, and adopts multiple protection measures in the design. It has a high degree of automation, strong reliability and excellent performance. The cleaning system of this machine adopts pulse boosting cleaning method, which is more efficient and cleaner than traditional models.
Specification
| Model | HS-801 |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 0201-2512inch |
| Noise | 35-60dB |
Product Features
1. By default, 30 nozzles are placed and nozzle brackets are used to reduce the time for nozzle replacement and achieve high efficiency.
2. Compatible with nozzles for installation machines such as PANASONIC, FUJI, JUKI, SIPLACER, YAMAHA, SAMGUNG, etc. 3. Use compressed air for flushing and drying.

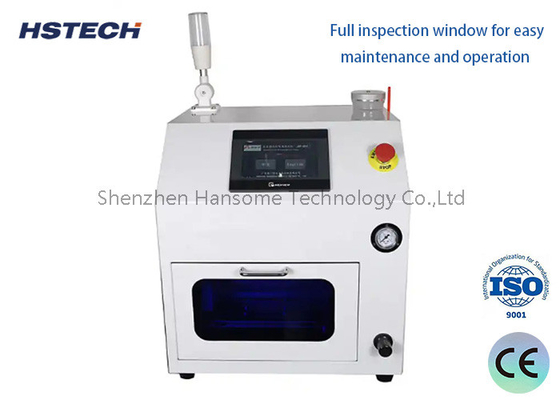

4. Full inspection window for easy maintenance and operation.
5. Using industrial pure water is harmless to all types of nozzles and reflector plates.
6. Equipped with fault alarm and emergency braking system, with overload protection system.
7. This machine adopts a streamlined design, with a beautiful and generous appearance;
8. Humanized design, can start and stop by pressing external buttons;
9. Touch screen+PLC distributed control, stable and reliable performance;
10. Garbage collection, easy to maintain.
Machine details
Cleaning performance
