Compact and Visible Screw Fastening Machine for Electronics Industry

Brand Name:	HSTECH
Model Number:	HS-SL551S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Desktop Screw Tightening Robot

Feeding:

Pick-up Screw

Axis:

3 Axis

Screws:

M1-M6

Moving Range:

500*500*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

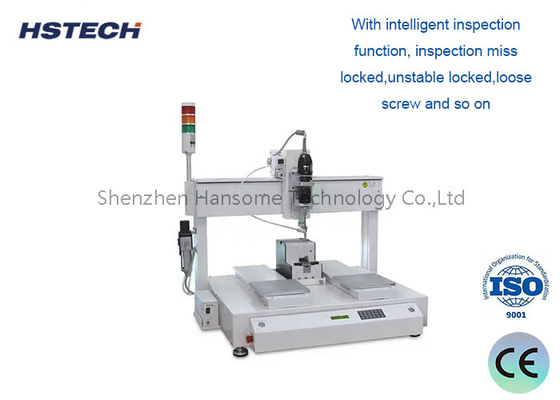

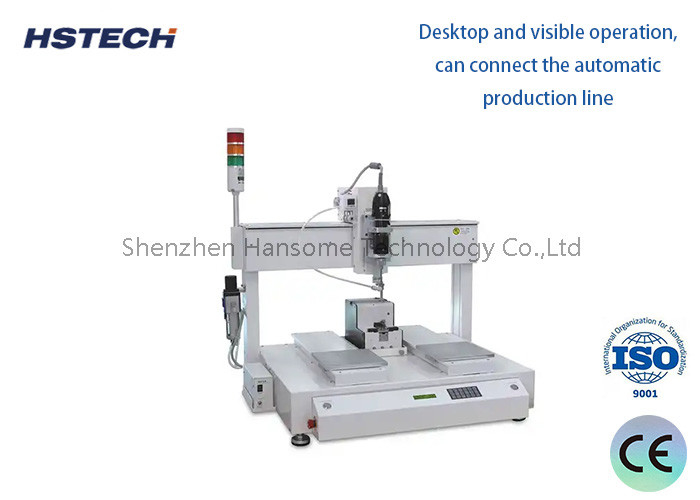

Compact and Visible Screw Fastening Machine for Electronics Industry

Introduction

The screw machine is composed of a feeding system and a lock-locking system, where in the feeding part, also called a screw-arrangement machine or a screw feeder, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. It's a automation equipment, widely used in the electronics industry. It compatible for screws from M1 to M6.

Specification

Model	HS-SL551S	HS-SL661S
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	500500100mm	600600100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	746785800mm	845885800mm
Machine weight	50kg	55kg

Features

1. Double-station running, one station locks the screw, and the other station puts the product, and the cycle runs uninterruptedly.
2. Realize mechanical automatic production, replace manual operation, facilitate management, improve efficiency and save costs.
3. The intelligent servo electric batch can track the locking torque value in real time.
4. The torque, number of turns, and revolutions of the lock can be set by the computer, and there is no need to manually check the torque every day.
5. Real-time upload of the locking time, torque, number of turns, OK/NG, etc. of each screw.
6. The number of screw torque turns can be set in sections, and different locking speeds can be set for the first 2 turns and the last 2 turns.
7. The CCD visual image vision system automatically calibrates the motion track of the manipulator to achieve high-precision locking screws.
8. Equipped with intelligent electrical batch and other peripheral devices, it has strong expansibility, can meet other process development requirements, and has complete functions.
9. It has the function of data teaching and monitoring, and can view the online production situation such as production capacity, production efficiency, and production status in real time.
10. It has anti-slip wire alarm, floating height, missing punch and other alarm functions, and dynamic counting functions such as bad product statistics.
11. Multi-language operation interface, easy to learn, easy to operate, ordinary employees can easily complete it.
