| Brand Name: | HSTECH |
| Model Number: | HS-SL551S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
| Model | HS-SL551S | HS-SL661S |

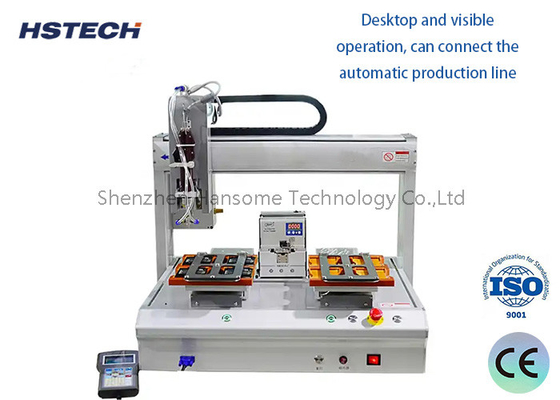

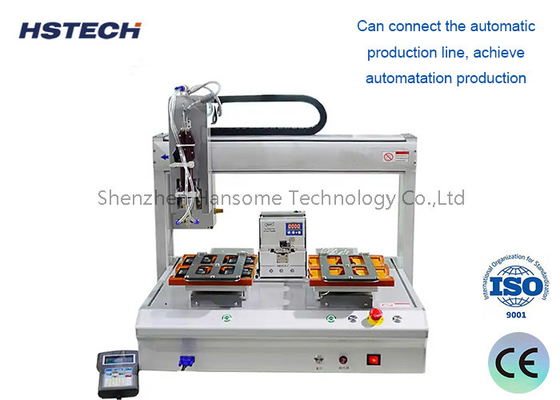

| Production name | Automatic Screw Locking Machine | |
| Moving range(X/Y/Z) | 500*500*100mm | 600*600*100mm |
| X/Y axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M5 | |
| Machine dimension | 746*785*800mm | 845*885*800mm |
| Machine weight | 50kg | 55kg |
Features
1. Screw counting, material detection, low noise of the screw dividing mechanism.
High reliability of screw feeding, maintenance-free screw feeding.
2. Servo electric batch and grinding grade screw drive: torque can be displayed in real time can also be achieved in two speed locking, designed to automatically compensate for errors in the mechanism, can ensure the accuracy and stability of the automatic locking screw machine.
3. The motion mechanism adopts closed-loop motor: the motion speed can reach 1000MM/S.
4. Adopting ladder type feeding machine, blowing air locking function, can work alternately.
5. High precision, low noise, a machine can be up to 4-6 people, improve production efficiency.
