Error Prevention 6 Axis Screw Fastening Machine with Leak Detection Function

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Automatic Screw Locking Machine

Feeding:

Suction Feeding

Axis:

4axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Port:

Shenzhen

Oem:

Yes

Warranty:

1 Year

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

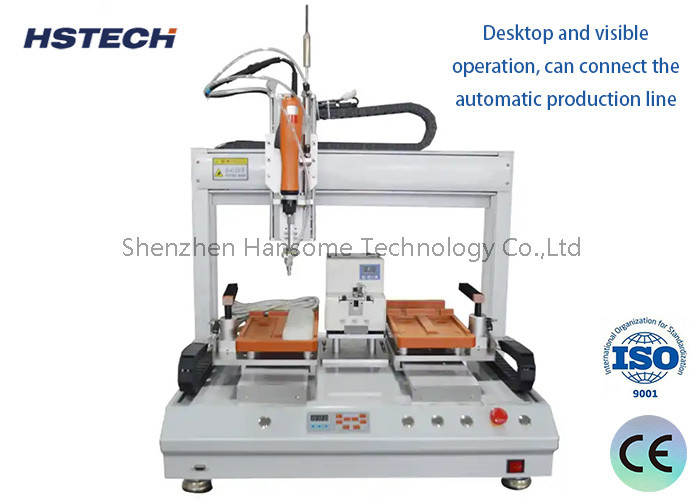

Error Prevention 6 Axis Screw Fastening Machine with Leak Detection Function

Introduction

The screw machine is a automtic equipment, with 4 axis moving system, double working station, single feeder, the whole machine composed of a feeding system and a lock-locking system, the feeding part responsible for screw-arrangement machine, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. This screw lock machine is a automation equipment, widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.

Features

1. It can fasten several screws per cycle and save more labors. Axises can be added.

2.Loading and unloading are performed manually. Screw fastening quality will be identified automatically.

3.Universal and small size, easy to change products and can work with flow lines together.

4.Reducing the operator s intensity saving time and energy.

5.Screw feeding detection function provided, to ensure the fastening quality.

6.Flexible and universal. Can change fastening kits to adapt to different screws.

7.Easy to operate. The operators can get the operation and commissioning skill quickly.

8.With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.

9.Accurate torque and reliable fastening quality consistence.

10.High efficiency and more fastening devices can be added for locking several products at the same time.

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
