| Brand Name: | HSTECH |
| Model Number: | HS-505 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
High efficiency Handheld Screwdriver with auto screw feeding machine for electronic products
Application
1. Suitable for various types of screws, the total length of the screws should be greater than 1.5 times the diameter of the nut;
2. Suitable for deep screw locking, depth less than 100mm, M1-M5 screws.
3. Suitable for digital electronics, small home appliances, power switches, lamps, LEDs, toys, speakers, small fans, VR, hardware and other products manufacture.
Features
1. High efficiency, 60 ~ 120pcs / m, one person is equivalent to two or three persons,
2. The speed of screw locks of new and old employees is almost the same, employees can work long hours without being tired, and can maintain efficient work.
3. Low cost, far lower than the price of screw machines in the existing market. No air cylinder, low energy consumption, cost saving, can be faster than pneumatic and fully automatic.
4. The electric batch is small and light. It will not hinder the workers' sight, and it is convenient to store and move.
5.Stable performance, convenient after sale. The machine has a service life of 2 to 3 years, and non-professionals can process it in 5 seconds to 1 minute. Sporadic failure. Professional engineers assist in troubleshooting.
Specfication
| Model | HS-505 |
| Screw capacity: | M3*10/3000PCS |
| Efficiency: | 50-80pcs/min |
| Screw feeding speed: | 0.5s/pcs (standard screw) |
| Feeding type: | Blowing |
| Feeding length: | 1- 4Meter |
| Power supply: | AC220V 50HZ |
| Power: | 40W |
| Working pressure: | 0.4Mpa-0.6Mpa |
| Weight: | App 11KG |
| Dimension: | 370*220*280mm |
| Noise | Lower 65 |

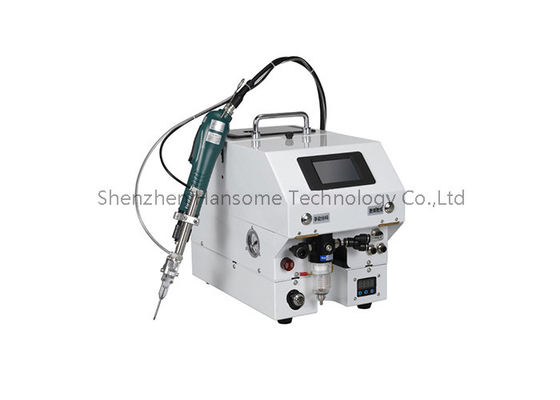

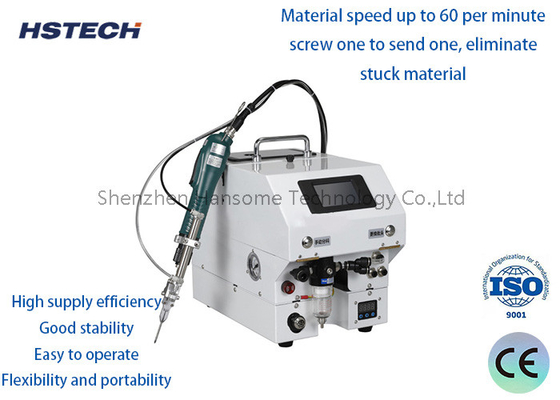

Handheld screw tightening machine details photos
