| Brand Name: | HSTECH |
| Model Number: | HS-505 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

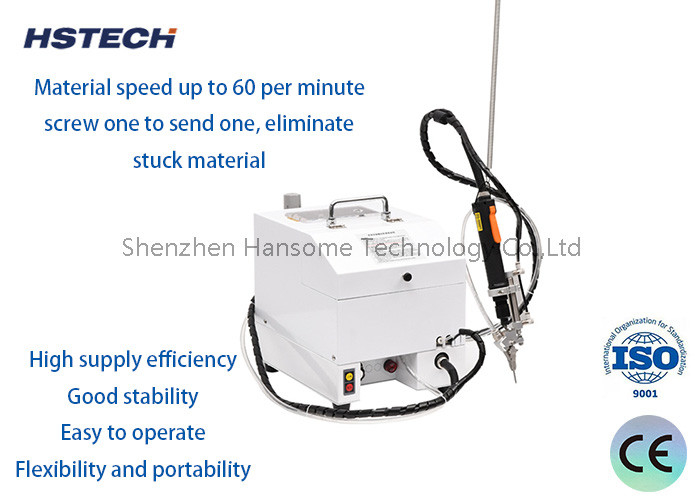

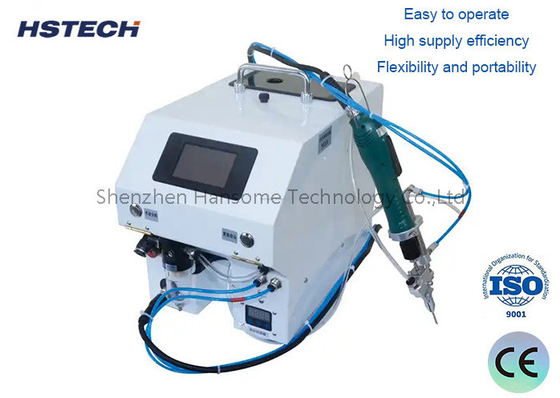

Handheld Screw tightening machine with auto screw feeder system
Application
Applicable to all kinds of electronic products such as toys, mobile phones, telephones, calculators, navigation, dash cam, audio, video and other products screw tightening application.
Features
1. The whole machine adopts rotary feeding, with small volume, low noise and light weight. It can be stored on the working platform.
2. Screws are automatically arranged, selected, supplied and fed, and there will be an automatic alarm if there is no material.
3. Sensor controlled during automatic feeding, supplied one by one, no repeated feeding.
4. To avoid material jams, no feeding when slippery or less torque during locking process.
5. Good stability, it can be solved within few seconds by any person even if jams happened.
6. High efficiency, 1 second for 1 screw.
7. The machine can help manufacture to perform automated production with high efficiency, and save manpower.
8. The main components are made of high quality metalogial materials undergoing special treatments. The electronic components are imported to make sure that the quality can meet your requirements.
Specfication
| Model | HS-505 |
| Screw capacity: | M3*10/3000PCS |
| Efficiency: | 50-80pcs/min |
| Screw feeding speed: | 0.5s/pcs (standard screw) |
| Feeding type: | Blowing |
| Feeding length: | 1- 4Meter |
| Power supply: | AC220V 50HZ |
| Power: | 40W |
| Working pressure: | 0.4Mpa-0.6Mpa |
| Weight: | App 11KG |
| Dimension: | 370*220*280mm |
| Noise | Lower 65 |
