Automatic Screw Locking Machine, 4 Axis, Fast & Accurate, M1-M6 Compatible

Brand Name:	HSTECH
Model Number:	HS-SL5331
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

4Axis Screw Locking Machine

Feeding:

Suction Feeding

Axis:

4axis

Screws Compatible:

M1-M6, Or Customized

Moving Range:

500*300*300*100mm

Material:

Main Aluminum

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

4 Axis Automatic Screw Locking Machine, M1-M6 Compatible, Fast & Accurate

Introduction

The screw machine is a 4 axis screw lock machine, with double working station, single head and single feeder, the whole machine composed of a feeding system and a screw driver locking system, the feeding part responsible for screw-arrangement machine, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. This screw lock machine is a automation equipment, widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Features

1. The handheld box adopts 320*240 high-resolution color screen and full Chinese operation interface, easy to learn and use.
2. It has two modes of application: blowing and sucking.
3. Support multiple screw bins in suction mode.
4. support extended applications, such as locking screw dispensing, welding, testing, handling, assembly, etc.
5. support dual working platform and dual boot mode.
6. When the fault occurs, select the replay or skip mode.
7. with regional array replication, platform replication, batch editing, single-step operation and other functions.
8. After the operation parameters are edited, the action parameters are downloaded to the controller through the serial port, and the operation can be performed offline. Action parameters can also be saved In the hand-held box, easy to call.
9.can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

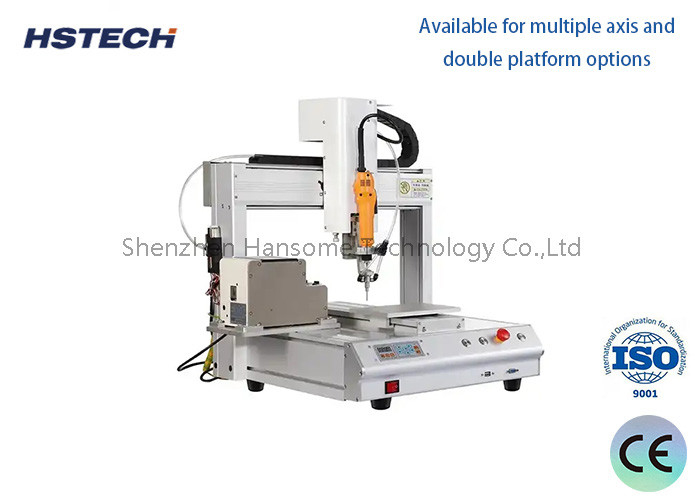

Automatic Screw Locking Machine, 4 Axis, Fast & Accurate, M1-M6 Compatible 0
