| Brand Name: | HSTECH |
| Model Number: | HS-SL7331S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
| Model | HS-SL7331S | |

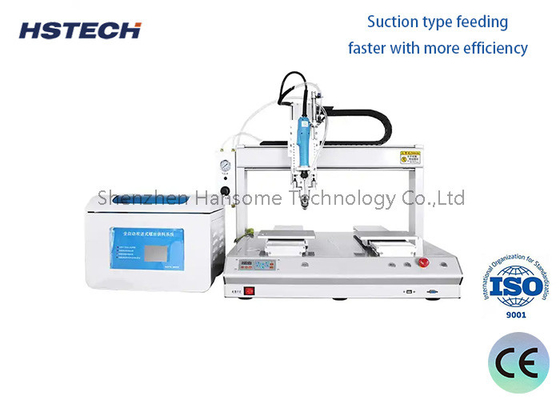

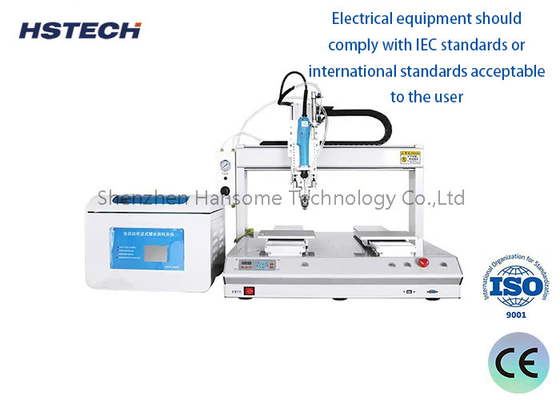

| Production name | 6Axis Automatic Screw Locking Machine | |
| Moving range(X1/Y1/Z1) | 300*300*100mm | |
| Moving range(X2/Y2/Z2) | 300*300*100mm | |
| X/Y axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 1092*585*800mm | |
| Machine weight | 85kg | |
