| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

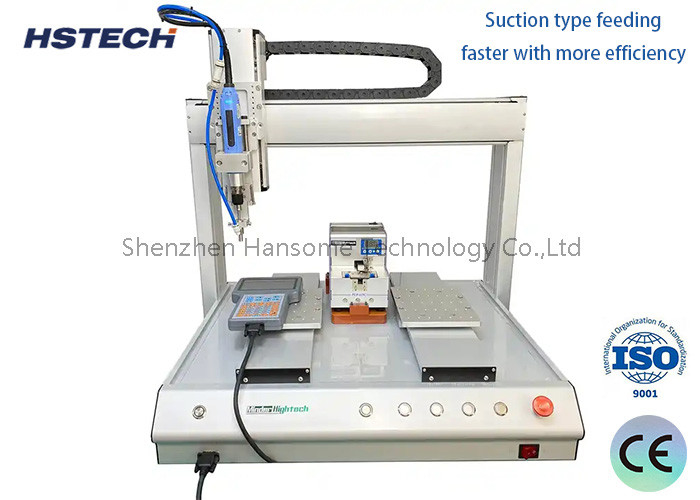

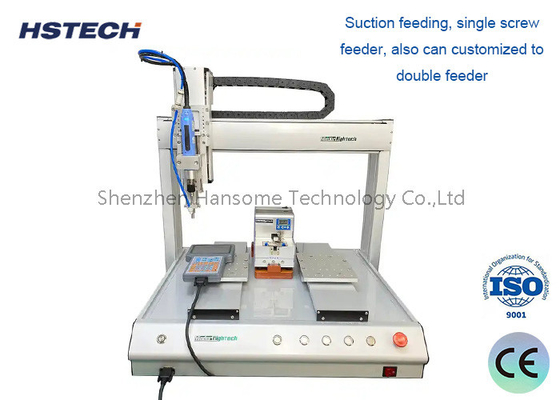

Introduction of automatic locking screw machine
HS-SL series are all coordinate type, and multi-axis type in the work mode is more different, coordinate type through the PLC to set the coordinates of the point position, the equipment according to the set coordinates of the position of the locking task, can be configured with a number of electric batches to enhance the efficiency. Flexibility is better, can store N sets of programmes to meet the different products screw locking process. The equipment is easy to operate, through the configuration of the touch screen can be operated, without the need for a computer.
HS-SL series mainly includes double platform and single platform, double platform in the daily production of the most applications, mainly dual-platform man-machine co-operation is better, the equipment screwing and manual pick and place the product on different platforms, rotating operations, manual non-stop loading and unloading, the equipment non-stop screwing, high production efficiency. If there are more screws, one person can take care of more than one equipment, which saves a lot of labour.
| Model | HS-SL5331 | |
| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano
2, Guide: Hiwin
3, Photoelectric switch: Omron
4, Power supply: Meanwell
