| Brand Name: | HSTECH |
| Model Number: | HS-SL5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |

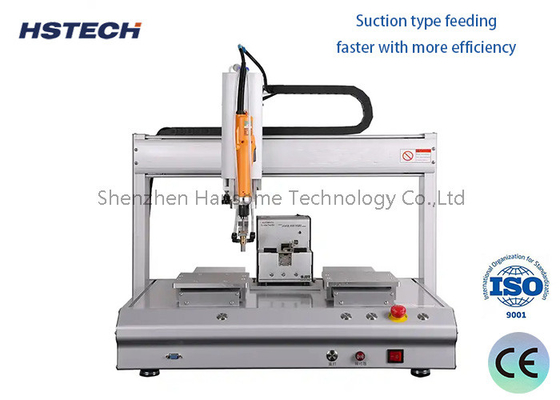

It has 6-axis moving system, double station and single feeder. The whole machine consists of feeding system and locking system, and the feeding part is responsible for the screw arranging machine, which is a relatively simple screw arranging method, aiming to improve the working efficiency. This kind of screw locking machine is a kind of automation equipment, widely used in electronic industry. It is suitable for screws from M1 to M6, other special screws can be customised.
| Model | HS-SL5331 | |
| Production name | 4Axis Automatic Screw Locking Machine | |
| Moving range(X/Y1/Y2/Z) | 500*300*300*100mm | |
| X/Y1/Y2 axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y1/Y2 axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 746*585*800mm | |
| Machine weight | 65kg | |
Main parts brand
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
