| Brand Name: | HSTECH |
| Model Number: | HS-SL551S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
| Model | HS-SL551S | HS-SL661S |

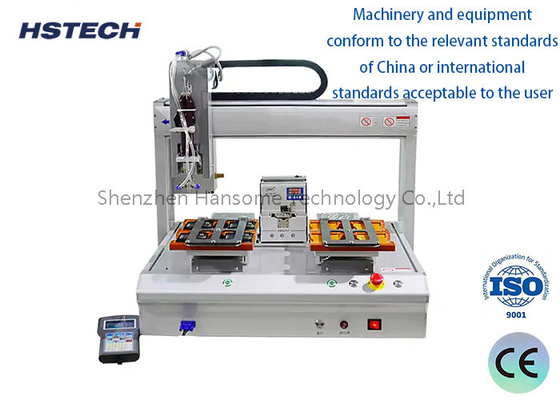

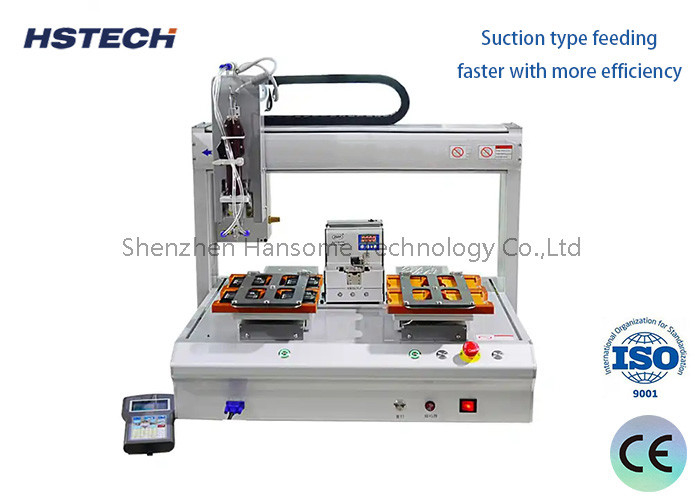

| Production name | Automatic Screw Locking Machine | |
| Moving range(X/Y/Z) | 500*500*100mm | 600*600*100mm |
| X/Y axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M5 | |
| Machine dimension | 746*785*800mm | 845*885*800mm |
| Machine weight | 50kg | 55kg |
Features
1.Screw feeding machine is mainly composed of screw automatic conveying system, x-y-z movement platform, control system and screw driving system. Screw feeding machine efficiency is much higher than the traditional manual work.
2.Automatic screw tightening machine is with various types: single platform, double platform, dual screw feeding systems, double screw feeder with blowing and pneumatic mode to meet different product requirements.
3.Automatic Screw fastening machine is programmed by teaching pendant for easy operation with detection functions as leak lock,sliding teeth,floating lock and so on.
4.Screwdriver with feeder is applied to M1-M8 screws, mainly applicable for socket, switch, LED, valve, toy, automobile, household appliances, 3C industry etc.
