| Brand Name: | HSTECH |
| Model Number: | HS-VS810 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50pcs per month |

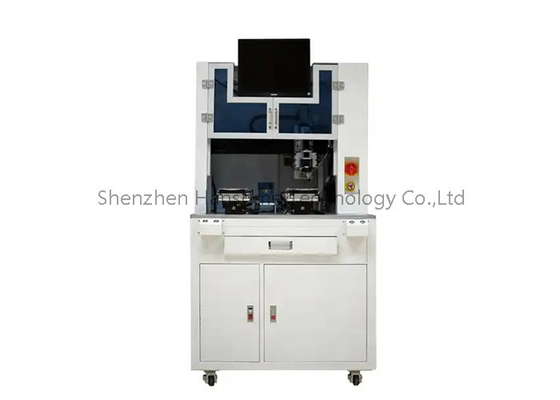

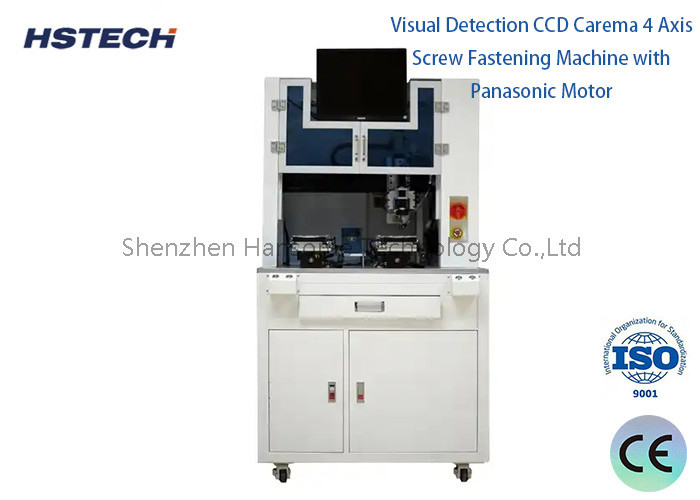

CCD Automatic Screw Fastening Machine with Panasonic Motor & HIWIN KK Module
Application
This CCD auto screw locking machine is widely used for locking the casing of smart phone, power adapter, PCB electronic products, batteries, small household applicance, wifi routers, power supply, toy wheels, and other automotive parts and small electronic products.
Specfication
| Model | HS-VS810 |
| Product name | Auto CCD screw fastening machine |
| Power supply | AC380V |
| Working axis | 4 axis |
| Screw diameter range | 0.8-2.0mm |
| Repeat accuracy | ±0.02mm |
| Motor | Panasonic servo motor |
| Linear guide/screw | HIWIN brand KK module |
| Control card | LEADSHINE brand high performance control card |
| Screw driver | Vauguard |
| Camera | Germany brand BASLER industrial camera |
| Lens | High resolution high performance lens |
| Light source | Industrial LED source |
| Vacuum generator | AIRTEC |
| Feeder | NSRI from Japan |
| Optoelectronic parts | Schneider / Omron |
| Machine size | 930*780*1700mm |
| Gross weight | 350kg |
1.It can fasten several screws per cycle and save more labors. Axises can be added.
2.Loading and unloading are performed manually. Screw fastening quality will be identified automatically.
3.Universal and small size, easy to change products and can work with flow lines together.
4.Reducing the operator s intensity saving time and energy.
5.Screw feeding detection function provided, to ensure the fastening quality.
6.Flexible and universal. Can change fastening kits to adapt to different screws.
7.Easy to operate. The operators can get the operation and commissioning skill quickly.
8.With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.
9.Accurate torque and reliable fastening quality consistence.
10.High efficiency and more fastening devices can be added for locking several products at the same time.
