| Brand Name: | HSTECH |
| Model Number: | HS-VS800 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50pcs per month |

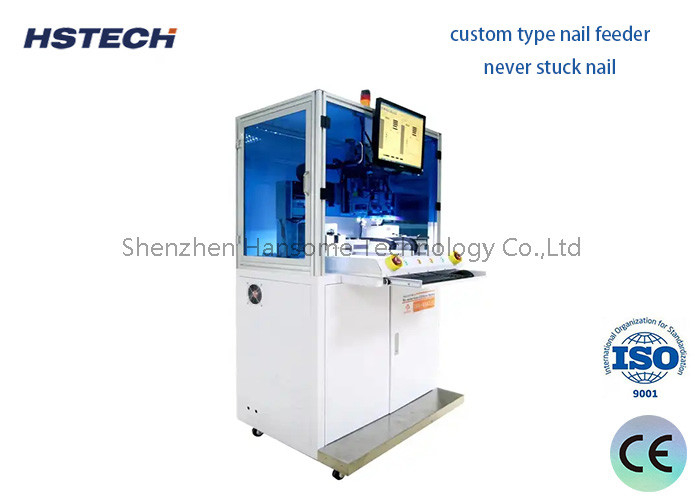

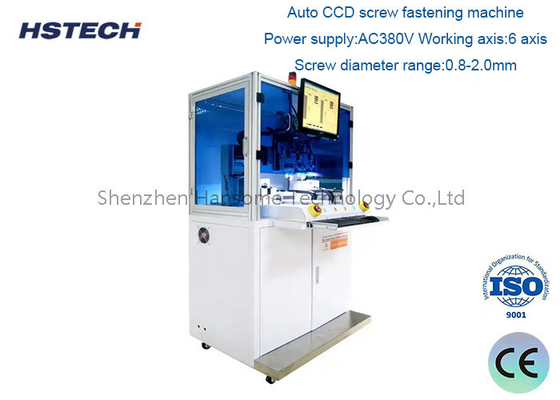

CCD Vision 6 Axis Screw Locking / Fastening Machine with PC Display
Introduction
This machine is a high-precision screw locking machine with CCD positioning, which can be used in conjunction with the Windows system to view all the operation steps for tightening screws. It adopts HIWIN P-Class KK sliding module and Panasonic servo motor, customized nail feeder, non stick nails, and also uses laser positioning sensor to detect the height of the lock. Servo intelligent electric screwdriver, used for high-precision tightening. All actions of tightening the equipment are completed by a high-performance motion control card.
Application
This CCD auto screw locking machine is widely used for locking the casing of smart phone, power adapter, PCB electronic products, batteries, small household applicance, wifi routers, power supply, toy wheels, and other automotive parts and small electronic products.
Specfication
| Model | HS-VS800 |
| Product name | Auto CCD screw fastening machine |
| Power supply | AC380V |
| Working axis | 6 axis |
| Screw diameter range | 0.8-2.0mm |
| Repeat accuracy | ±0.02mm |
| Motor | Panasonic servo motor |
| Linear guide/screw | HIWIN brand KK module |
| Control card | LEADSHINE brand high performance control card |
| Screw driver | Vauguard |
| Camera | Germany brand BASLER industrial camera |
| Lens | High resolution high performance lens |
| Light source | Industrial LED source |
| Vacuum generator | AIRTEC |
| Feeder | NSRI from Japan |
| Optoelectronic parts | Schneider / Omron |
| Machine size | 930*780*1700mm |
| Gross weight | 350kg |
