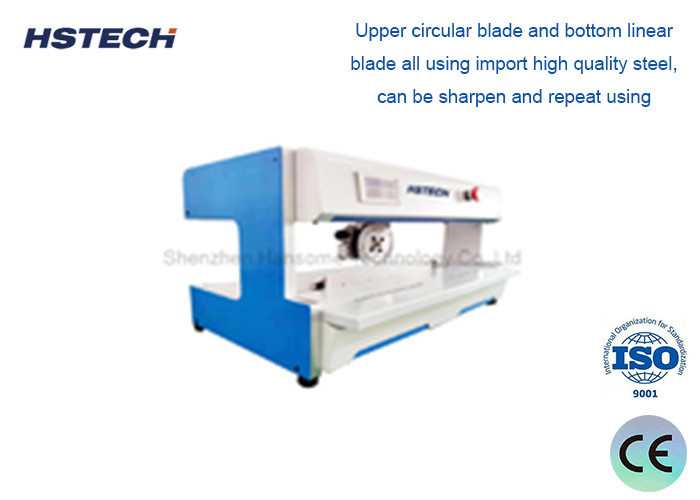

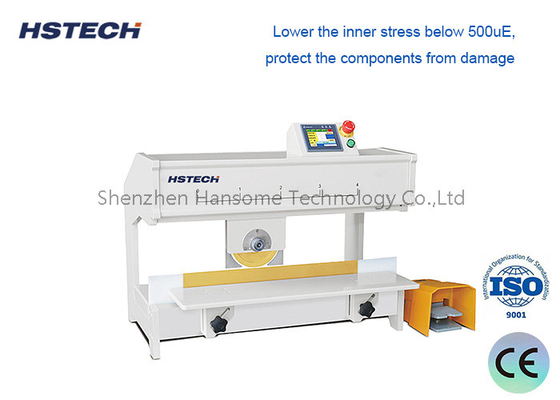

LED Strip Upper Circular Blade And Bottom Linear Blade
Features:
1, It can cut rapidly regardless of the quantity, very economic.
2, Upper circular blade and bottom linear blade all using import high quality steel, can be sharpen and repeat using.
3, Moving range:(0~400mm/600mm)as customers' request, circular blade can be adjustment(0~5mm),suitable for different thickness board, slove the problem for differenct V-cut groove.
4, The max cutting width is unlimited, single PCB best at 1~200mm.
5, The operation platform can be adjustment, based on the height of upper components of the PCB, standard machine the height is less than 32mm.
6, Buzzer alarm protection built in, also the light curtain and protective blade double safety guarantee, avoid operator injuiry.
Specification:
| Model | HS-203 | HS-206 |
| Voltage | AC110V/220V 50/60Hz | |
| Blade size(circular blade) | ϕ125mm*30mm*3mm | |
| Blade size(linear blade) | 420mm×65mm×6mm | |
| Max cutting length | 5~400mm | 5~600mm |
| PCB thickness | 0.8~3mm | |
| Separation speed | 300~500mm/second(adjustable) | |
| Separation width | Best 1~200mm | |
| Components height | ≤32mm( or customized) | |
| Power | 60W | |
| Machine dimension | 710x450x420mm | 900x450x420mm |
| Weight | 55kg | 75kg |
Main functions
Efficient separation:
It can quickly separate multiple PCBs from the same motherboard, reduce manual intervention and improve production efficiency.
Precise cutting:
Use V-shaped cutting groove design to ensure that the circuits and components of the PCB are not damaged during the separation process.
Reduced waste:
Through precise cutting process, material waste is minimized.
Automation options:
Some equipment is equipped with automatic feeding system to further improve production efficiency and consistency.
Application scenarios
Electronic manufacturing:
Widely used in the production line of electronic products, especially in mass production, to cut multiple PCBs into single circuit boards.
High-density assembly:
In PCBs with high-density component assembly, ensure that the cutting process does not affect the tiny components.
Small batch and multi-variety production:
Suitable for production needs that require fast switching of different models of PCBs.
Operation points
Set parameters:
Adjust the cutting depth and speed according to the thickness and material type of the PCB.
Regular maintenance:
Clean and inspect the equipment regularly to ensure cutting accuracy and equipment performance.
Safe operation:
Follow safety regulations during operation to ensure the safety of operators.
Board samples(Suitable for all kinds of V-groove PCB board:FR4, aluminum board,fiber glass board, LED board, LED strip board)
