| Brand Name: | HSTECH |
| Model Number: | HS-F350 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

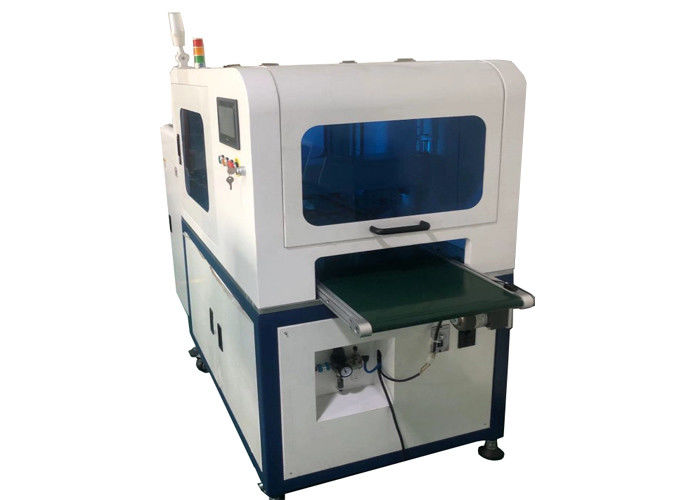

Full Automatic V-cut Separating PCB Board Cutting Machine
Description:
This machine is a full automatic V-cut type PCB separating machine, it use the PCB loader to achieve automatic PCB loading, and the belt will trasport the PCBs for automatic linear blade and circular blade combined separating. Operator just put the boards into the magazines and wait the PCB units after separating at the end of the machine.It's a high automatic PCB separating machine.
Features:
1, PLC control precision PCB depaneling, can connect the PCB loader machine, full automatic from board loading and collecting.
2, Save the labour for manual loading the PCBs, much efficiency and more precision.
3, Can save 100 groups board separating data, when separating different type boards, just import the saved data, very convenient.
4, Moving balde type boards separating method, ultra low cutting force stress, suitable for PCB with components double sided.
5, The boards loading width can be adjusted, suitable for many kinds of PCBs.
6, The machine equipped with the ESD transport belt, it will transport the PCB to the production line automatically.
7, The machine equipped with infrared light curtain sensor, high security.
8, Taiwan brand TBI lead screw, smooth and easy adjusted.
9, High speed Japan brand steel balde, can be sharpen repeatly.
10, The machine can add the SMEMA single, can connect the PCB loader to achieve automatic loading.
Specification:
| Model | HS-F350 |
| Efficiency cutting length | 0-500mm |
| Separating width | Best 1-200mm |
| Circular blade size | Φ125*30*3mm |
| Linear blade size | 360*45*6mm |
| Blade thickness | 0.5-4mm |
| Separating speed | Adjustable |
| Blade material | Overseas high quality steel blade |
| Production ability | 100,000pcs per day |
| Voltage | AC110V/220V |
| Air pressure | 0.5-0.8Mpa |
| Power | 150W |
| Machine dimension | 990*550*1250mm |
| Weight | 200KG |
Product Detail:
