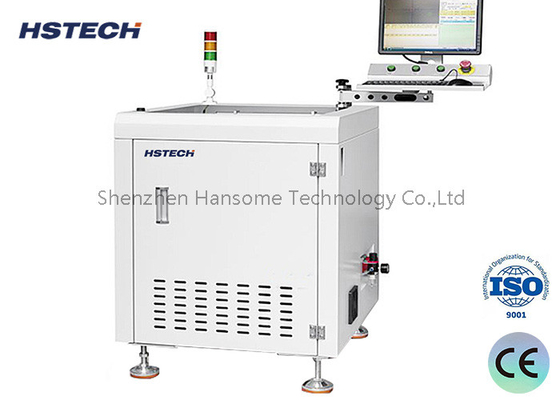

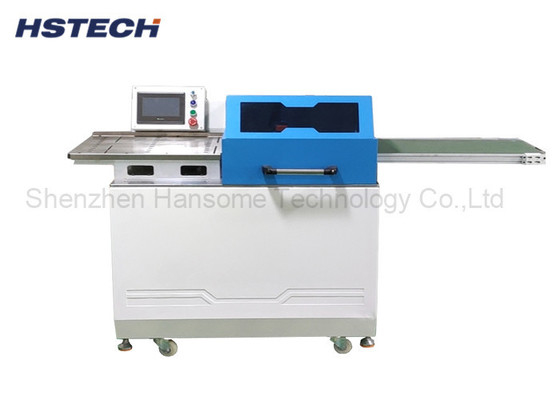

Aluminum Alloy 2600W Small Size Offline PCB Router For PCB Assembly
Introduction:
A Small Size Offline PCB Router is a compact, standalone machine designed for precise cutting and milling of printed circuit boards (PCBs). These routers are essential in the electronics manufacturing industry for applications such as prototype development, small batch production, and PCB customization.
Features:
1, Offline automatic separating.
2, It's a mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.
3, Customized fixtures.
4, PC and CCD visual system.
5, Programming with compensation and dust collection.
6, Available for max 410-510mm size PCBA.
7, Flexible for cutting two different type products.
8, Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).
Specification:
| Model | AR-7 | AR-7 mini |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Working size | 50x50~410x460mm(max) | 50x50~260x310mm(max) |
| Loading mode | Manual | |
| Cutting spindle/speed | 5000~60,000 rpm | |
| PCB thickness | 0.4-4mm | |
| Separating speed | 1-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Fixing type | Fixtures | |
| Programming | Vision teaching, inline programming | |
| Milling kit | φ0.8~φ3.0 right side rotation, shank Tungsten steel | |
| Dust collection method | Bottom dust collection | |
| Dust collector | 3 phase, 380V, 1.2KW | |
| Noise | <75dB | |
| Control system | Industrial PC | |
| Spindle brand | Germany brand, Sycotec 4025 | |
| Servo motor | A5 series | |
| Motion control | 4 axis motion control board | |
| Lead screw | C5 grinding screw lead | |
| Linear guide | P rank silence guide | |
| Camera | Germany brand Imaging 40W industrial camera | |
| Machine size | 700*800*930 mm | 500*650*930mm |
| Screen | 17inch | |
Application:
This machine is a floor standing automatic PCBA routing machine, it’s single platform operation, using PC for programming, automatic bottom routing and bottom dust collecting.The machine using high speed routing spindle, fix the PCBA with jig, to separate the stamp hole, curve PCB, and other irregular connected PCBs.
