Double Protective Device V-cut PCB Cutter Machine Blade Miving PCB Separator

Double Protective Device V-cut PCB Cutter Machine Blade Miving PCB Separator

Introduction:

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

Features:

1, This machine can use for cutting all kinds of boards with v-slot.

2, Durable blade design, balde can be shaped at least twice.

3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

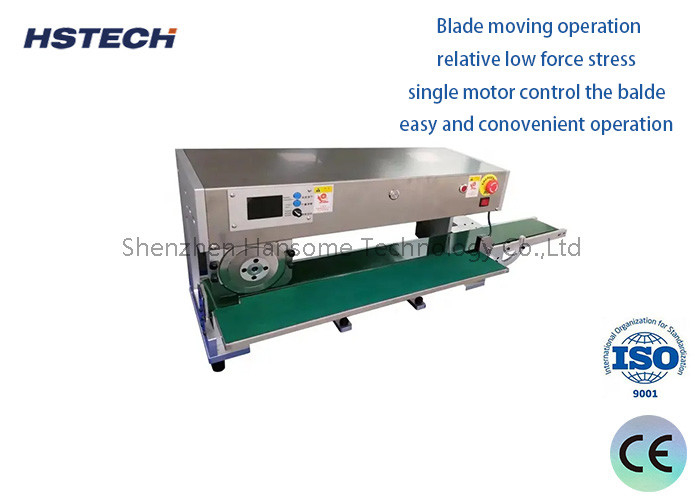

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.

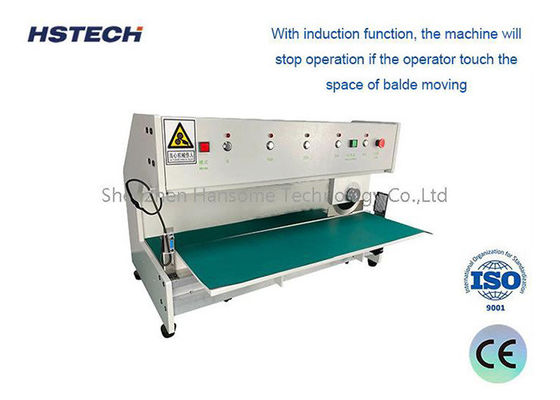

5, With induction function, the machine will stop operation if the operator touch the space of balde moving.

6, Security, with double protective device,no need worry about the security production problem.

7, Durable, using high quality good material blade.

Specification:

Applications

1. PCB Manufacturing:

   • Used primarily in the manufacturing process to separate PCBs that are produced in panels, ensuring efficient workflow.

2. Prototype Production:

   • Ideal for prototyping environments where small batches of PCBs need to be separated quickly and accurately.

3. Repair and Rework:

   • Useful for repair shops that require separating PCBs from panels for testing or rework.

4. Custom PCB Solutions:

   • Beneficial for businesses that offer custom PCB designs and need precise separation for various applications.

Benefits

• Precision and Quality: Ensures accurate separation without damaging the PCBs or their components, maintaining product quality.
• Increased Efficiency: Automating the separation process speeds up production times and reduces manual labor.
• Reduced Waste: Minimizes material waste by ensuring clean cuts and preserving the integrity of the boards.
• Versatility: Accommodates various PCB sizes and thicknesses, making it suitable for different manufacturing needs.
