| Brand Name: | HSTECH |
| Model Number: | HS-F390 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

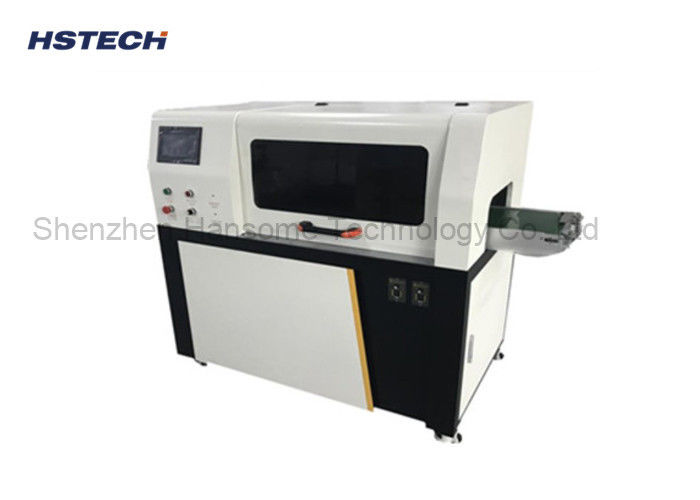

PCB Depaneling Router With Well Shaped Separation CAB Blade
Features:
1, Can separating well-shaped boards.
2, Can fit the request for horizontal and vertical board depaneling.
3, The machine can achieve rapid change, modular change quickly.
4, PLC and touch screen control.
5, Can connect the upstream PCB loader machine.
6, Germany brand CAB separating blade.
7, Easy operation, operator can use the machine with easy training.
8, Unique new sepration tool design, durability increase by 1.5-2 times.
9, Safety: Light curtain induction safety device ensures safe production.
Specification:
| Model | HS-F390 | |||||||
| Production name | Well shaped PCB depaneling machine | |||||||
| Machine dimension | 250mm* 800mm*1295mm | |||||||
| Blade dimension | Circular blade ϕ60mm or φ80mm, linear blade 356x43.5x6mm | |||||||
| Blade material | high speed steel | |||||||
| Separating width | Small board 12mm, whole pin board 300mm | |||||||
| Voltage | AC220V/110V, 50/60Hz | |||||||
| Machine power | 300kW(without dust collector) | |||||||
| Separating thickness | 1/3 of board thickness | |||||||
| Air supply | 0.5~0.8Mpa | |||||||
| Separating speed | 300mm/s | |||||||
| Separating width | 1mm-200mm (The width of a single piece, not the width of the entire piece.) | |||||||
| Driven system | Stepper motor/ servo motor | |||||||
| Suitable boards | LED strip board/LED tube,aluminum baord and fiber glass boards | |||||||
| Weight | Around 300kg | |||||||
