| Brand Name: | OM |
| Model Number: | K type |
| MOQ: | 1 pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500pcs per month |

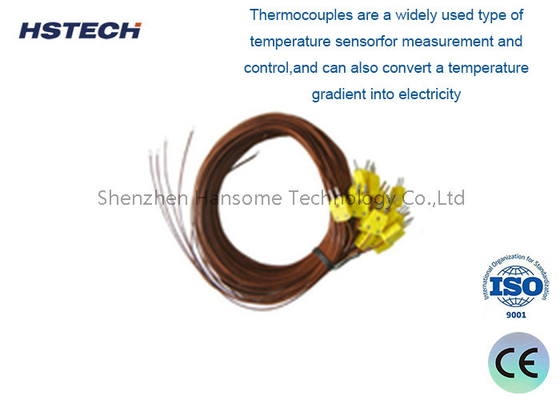

PtRh30-Ptrh6 WRR B Thermocouple with Connector TD Plugs SR Type Ceramic Plastic for 0-1800°C Use Temperature
Introduction
Line length: 1 m long, conventional can also be custom-made length of conductor.

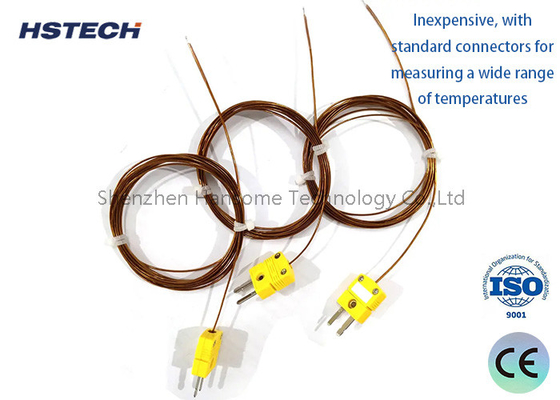

Plug structure: Mini flat plug
Design features: bare type contact thermocouple, glass fiber coated insulation isolation
| Product | Conductor material | Type | Graduation |
Use temperature°C (short time) |
Use temperature°C
|
|
|
Thermocouple |
PtRh30-Ptrh6 | WRR | B | 0-1800°C | 0-1600°C | |
| PtRh10-Pt | WRP | S | 0-1600°C | 0-1300°C | ||
| PtRh13-pT | WRB | R | 0-1600°C | 0-1300°C | ||
| NiCrSi-NiSi | WRM | N | 0-1000°C | 0-1000°C | ||
| NiCr-NiAl(Si) | WRN | K | 0-1200°C | 0-900°C | ||
| NrCr-constantan | WRE | E | 0-700°C | 0-600°C | ||
| Iron- Constantan | WRF | J | 0-600°C | 0-500°C | ||
| Copper-Constantan | WRC | T | 0-400°C | 0-350°C | ||
|
Thermal resistance |
Copper heat resistance | Cu50 | -50-150°C | |||
| Cu100 | -50-150°C | |||||
| Pt100 | -200-600°C | |||||
Application
Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust,
diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors
in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
