| Brand Name: | HSTECH |
| Model Number: | HS-200AGV |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per week |

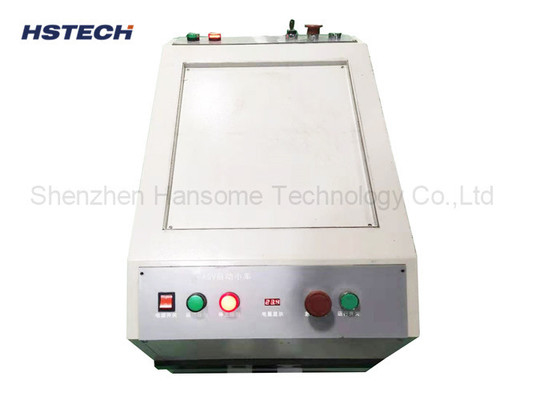

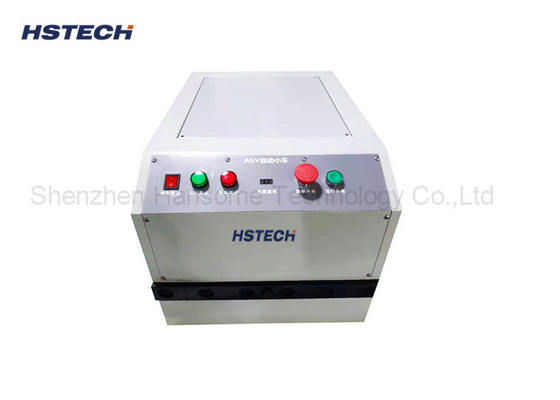

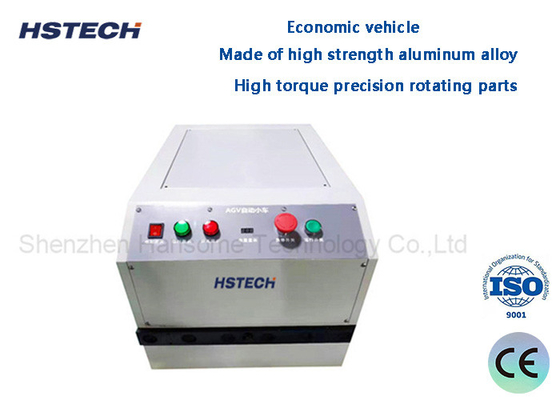

Economic Vehicle High Strength Aluminum Alloy High Torque Precision Rotating Parts Automated Guided Vehicle
Introduction
This AGV car is a economic vehicle, made of high strength aluminum alloy and high torque precision rotating parts. It's used rubber tape guidance to realize high-precision positioning and bidirectional driving.
The load capacity is 100KG and can meet mostly requirements. It has the function of fault self-test and can easily realize remote technical support and malfunction overhaul. It leads into multiple application ports and humanized interface that make customers easier to operate the control system. It has got mechanical anti collision and obstacle avoidance system, which can ensure the safety of operation.
Specification
| Product name | AGV transport car |
| Machine dimension | 760*420*350mm |
| Guide Method | rubber strip guidance |
| Driving Method | Dual-wheel differential driving |
| Load Capacity | 100kg(or customized) |
| Driving power | DC24V |
| Moving speed | 0-50m/min |
| Turning radius | min 800mm(car body) |
| Navigation accuracy | ±10mm |
| Continuous working time | >24h |
| Gradeability | 3-5degree |
| Stop accuracy | ±10mm |
| Lifting height | 50mm |
| Battery charge method | Manual charging |
| Safety induction range | ≤3m,can be adjustable |
| Emergency brake distance | <20mm |
| Battery | Li Battery |
| Alarm | light and sound alarm |
