| Brand Name: | HSTECH |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

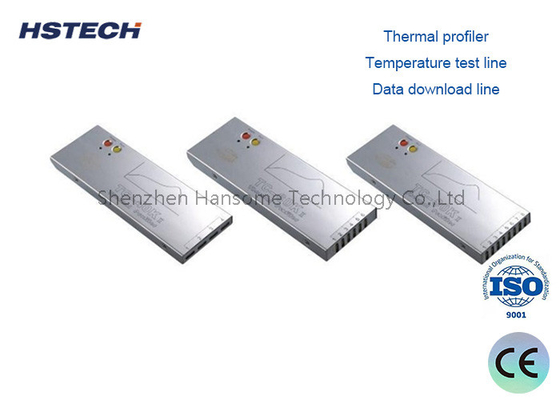

TCK Series Thermal Profiler: 80000 Data Point/Channel, 0.1℃ Resolution, RF Transceiver, Hi-Temp Adhesive Tape
| Thermal profiler | Insulation box |
| Temperature test line | Data download line |
| Charger | Hi-temp adhesive tape |
| Software CD | “+” screwdriver |
| Tweezers | Insulated gloves |
| Solder wire | Scissors |
| Instrument box | User Manual |
| Acceptance Certificate | RF Transceiver (Choose Composition) |
| Wave Test System (Choose Composition) |
|
1.High-quality Core Components: The product is equipped with PLC core components, ensuring its stability and reliability during use. These components significantly contribute to the efficient performance of the reflow oven profiler.
2.New & Unopened Condition: The original slim KIC 2000 reflow oven profiler is in perfect new condition, ensuring the buyer receives a high-quality and pristine product. This condition guarantees optimal performance and longevity.
3.Showroom Availability: The slim KIC 2000 reflow oven profiler is available in select locations such as the United States, France, and Germany. This makes it easily accessible to potential buyers in these regions, allowing for convenient and hassle-free inspections.
4.Rigorous Testing and Certification: The slim KIC 2000 reflow oven profiler undergoes a comprehensive machinery test report to ensure its performance meets international and industry-specific standards. This documentation guarantees that the product is dependable and can effectively handle a wide range of tasks, providing users with the assurance they require.
Main Technical Specifications

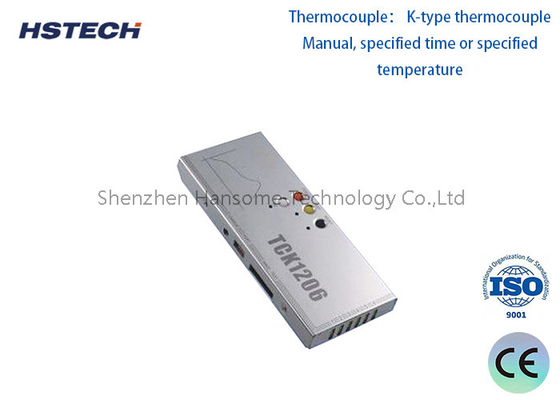

1,Thermocouple: K-type thermocouple
2,Sampling interval:0.05sec---600sec Set with software
3,Record data:80000 point/channel, Can record 20 sets profile
4,Resolution: 0.1℃
5,Temperature measuring range: 0—1000℃
6,Temperature measuring accuracy: ±1.0℃
7,Total power: ≤120mW
8,Operating voltage:3.6VDC, rechargeable battery
9,Dimensions: 195(L)×82(W)×21(H)mm 195(L)×103(W)×21(H)mm
10, Insulation box:245(L)×100(W)×30(H)mm
10,Start Mode : Manual, specified time or specified temperature
11,Record mode: Monitor/Record
12,Connection mode:USB/RF
13,Software version:Profilermanager 2.0
Product Library Manager
Machine Library Manager
Solder Library Manager
Recipe Library Manager
Data analysis
PWI
Peak Temp,Times of overtop the Temp
Times of between Temp(Reflow)
Slope of between Temp(Reflow)
Slope of between Times(Wave)
About Packaging
