| Brand Name: | HSTECH |
| Model Number: | HS-600 |
| MOQ: | 1 set |
| Price: | 9000~12000usd/set |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets per month |
Data sheet of Pneumatic stencil cleaner HS-600.pdf...

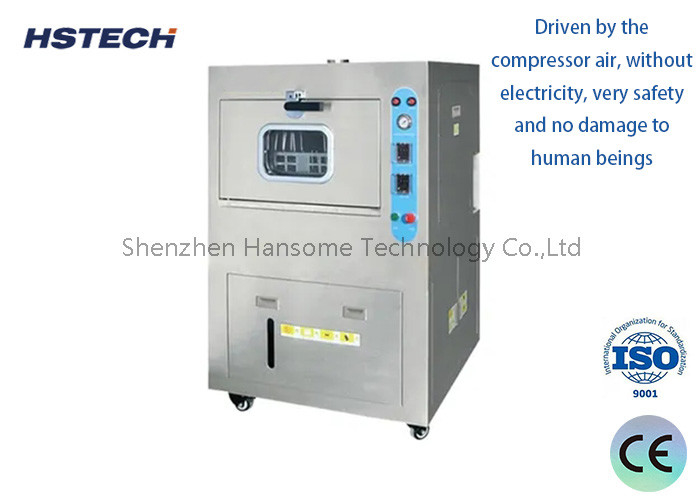

360° Rotating SMT Stencil Cleaner w/ Solvent Reuse
Machine introduction
This machine (Model:HS-600) we call it pneumatic SMT stencil cleaning machine, it's a automatic stencil cleaning equipment, with the cleaning and drying function combined. This machine uses compressed air as its energy source and belongs to a new type of high-performance fully pneumatic cleaning equipment. The scraper/PCB board is manually placed in the cleaning room, and after adjusting the cleaning and drying time, the start switch is pressed. The scraper/PCB board will be automatically cleaned and dried, and will stop running automatically when the set time is reached. The opening time of the door is automatically reset to facilitate the cleaning operation of the next workflow and greatly improve production efficiency. Among them, the liquid used for cleaning can be recycled in this machine, greatly reducing the consumption and cost of the liquid, greatly shortening the operation time, and eliminating the need for operators to come into contact with the liquid, which will not cause harm to human health. The power source used in this machine is compressed air, which does not require any electrical input, making its safety performance reach 100%. There are no requirements for liquids, and all control components use imported brands to ensure stable operation and long service life, reducing after-sales service after the warranty period. The exhaust gas generated by drying is discharged through a special exhaust device inside the machine, reducing the evaporation of liquid and reducing the consumption of liquid and compressed air.
Features
1, The machine adopt high quality SUS 304 stainless steel machine body, durable and stable, at the same time with beautiful appearance.
2, Driven by the compressor air, without electricity, very safety and no damage to human beings.
3, With both cleaning and drying function, one button operation, automatically drying the stencils after cleaning process.
4, Two sets spray bars 360 degree rotation cleaning, high quality spray nozzles, no cleanign dead corner and enough spraying pressure.
5, Cleaning solvent in and out pipe equipped.
6, 3 levels filter system, 10um,5um,1um, cleaning solvent recycle using, cost-effective and save energy.
7, Safety cleaning room, after the stencils put in the cleaning room, it will lock down tightly.
8, Modular design, automatic solvent siphone and emission, and all automaticaly operation, very efficienty.
9, Easy maintenance, open the cover and the operator can change the filters easily.
Specification
| Model | HS-600 |
| Power supply | Compressor air |
| Application | stencil,metal mesh, steel mesh,cooper screen,gule screen |
| Stencil size | standard 29inch and below,740*740*40mm |
| Cleaning solvent | Alcohol |
| Cleaning liquid capacity | Max 45L,Min20L |
| Best cleaning fluid using volume | 40L |
| Liquid consumption | 120ml/pc |
| Cleaning method |
Rotary double side pressure injection and high pressure air |
| Cleaning time | 2~4 Min Stencil and Copper Screen |
| Drying time | 2~5 Min |
| External air supply | 0.4Mpa~0.6Mpa |
| Consumer air quantity | 400~600L/Min |
| Air outlet size | φ125*25mm |
| Solder dross filter mode | 3 level filter(10um,5um,1um) |
| Weight | 305kg |
| Machine dimension | 980MM(L)*700MM(W)*1730MM(H) |
