| Brand Name: | HSTECH |
| Model Number: | HS-600 |
| MOQ: | 1 set |
| Price: | 9000~12000usd/set |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets per month |
Data sheet of Pneumatic stencil cleaner HS-600.pdf...
Automated SMT Stencil Cleaner w/ 3-Level Filter System
Machine introduction
This machine (Model:HS-600) we call it pneumatic SMT stencil cleaning machine, it's a automatic stencil cleaning equipment, with the cleaning and drying function combined. It's used in the SMT assembly process, designed for automatic cleaning solder paste steel mesh, red glue steel mesh, cooper mesh, resin screen,etc. It use the alcohol as the cleaning solvent, equiped with the 3 level filter system to achieve the solvent repeatly using, save the solvent consumption. This machine use the spray cleaning method for cleaning,powered by the air compressor, use the pump siphon the solvent and drive the spraying cleaning bars for double sides cleaning, the cleaning performance is very good.
Features
1, The machine adopt high quality SUS 304 stainless steel machine body, durable and stable, at the same time with beautiful appearance.

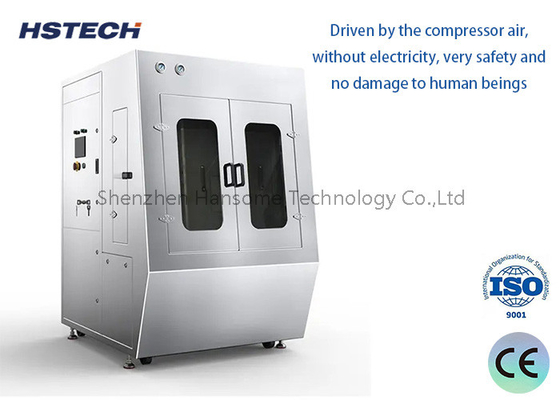

2, Driven by the compressor air, without electricity, very safety and no damage to human beings.
3, With both cleaning and drying function, one button operation, automatically drying the stencils after cleaning process.
4, Two sets spray bars 360 degree rotation cleaning, high quality spray nozzles, no cleanign dead corner and enough spraying pressure.
5, Cleaning solvent in and out pipe equipped.

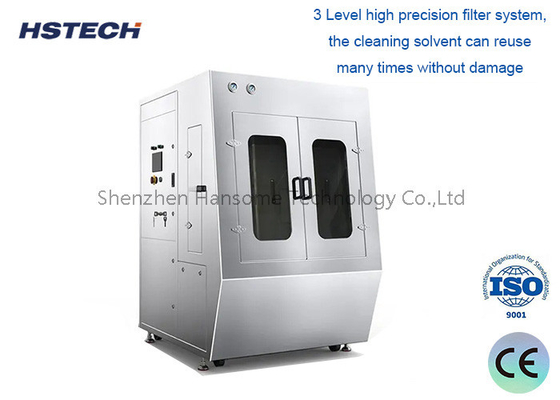

6, 3 levels filter system, 10um,5um,1um, cleaning solvent recycle using, cost-effective and save energy.
7, Safety cleaning room, after the stencils put in the cleaning room, it will lock down tightly.
8, Modular design, automatic solvent siphone and emission, and all automaticaly operation, very efficienty.
9, Easy maintenance, open the cover and the operator can change the filters easily.
Specification
| Model | HS-600 |
| Power supply | Compressor air |
| Application | stencil,metal mesh, steel mesh,cooper screen,gule screen |
| Stencil size | standard 29inch and below,740*740*40mm |
| Cleaning solvent | Alcohol |
| Cleaning liquid capacity | Max 45L,Min20L |
| Best cleaning fluid using volume | 40L |
| Liquid consumption | 120ml/pc |
| Cleaning method |
Rotary double side pressure injection and high pressure air |
| Cleaning time | 2~4 Min Stencil and Copper Screen |
| Drying time | 2~5 Min |
| External air supply | 0.4Mpa~0.6Mpa |
| Consumer air quantity | 400~600L/Min |
| Air outlet size | φ125*25mm |
| Solder dross filter mode | 3 level filter(10um,5um,1um) |
| Weight | 305kg |
| Machine dimension | 980MM(L)*700MM(W)*1730MM(H) |
Product advantages
1.Side wall air intake and drying design;
2.Fully pneumatic operation, no electricity required, and no safety hazards such as fire;
3.All stainless steel body: beautiful, wear-resistant, corrosion-resistant, in compliance with environmental requirements and standards;
4.Humanized design: One click operation and automatic liquid filling and discharging function, very easy to operate;
5.The replaceable modular controller and quick plug design make maintenance simple and convenient;
6.Two stage filtration system, low exhaust port, and S-shaped exhaust pipe design: solvent recycling, low liquid consumption;
7.High density equal pressure dual sided rotating cleaning nozzle, strong cleaning force, without damaging the tension of the steel mesh.
8.Systematically integrating global high-quality control devices to ensure excellent quality, stable performance, and long service life;
Cleaning performance
