| Brand Name: | HSTECH |
| Model Number: | DZ-300T |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

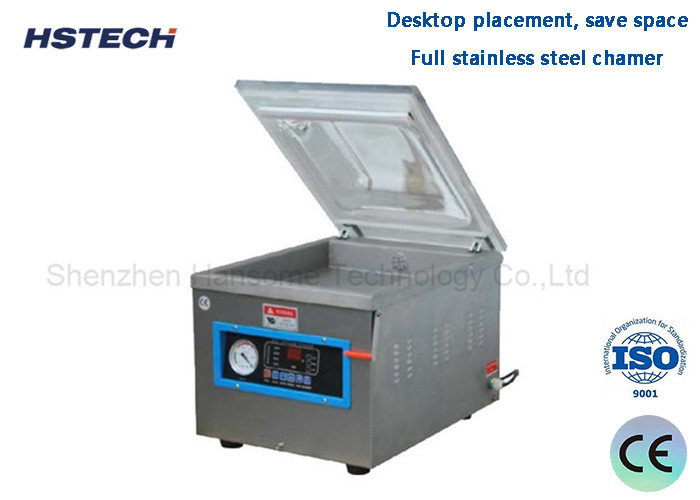

Full Stainless Steel Chamer Desktop Placement Transprent Cover Vacuum Packing Machine
Introduction
This machine used to vacuum packing to avoid moisture and oxidation, it widely used to pack Semiconductor, IC reel, mobile phone display, touch screen,PCB, FPCB, and other electronic products. Also used in food industry.
Features
1, Desktop placement, save space.
2. Full stainless steel chamer, not easy to be damaged.
3. The vacuum packaging items in a sealed state to prevent oxidation, mildew, insects, moisture, extend product storage period.
4. Transprent cover, operator can watching the whole packing process.
5. Fast packing time, can packing many times per minute.
6, Used in many industry, small volume and convenient.
Specification
| Model | DZ-260T | DZ-300T | DZ-400T |
| Chamber size | 380×280×55mm | 380×320×55mm | 440×420×75mm |
| Sealing size | 260×330mm(single sealing) | 330x320mm(single sealing) | 400×310mm(double sealing) |
| Air pressure | -0.1Mpa | -0.1Mpa | -0.1Mpa |
| Capacity | 1-3 times per min | 2-4 times per min | 3-6 times per min |
| Voltage | 1phase 110V/220V, 50/60Hz | 1phase 110V/220V, 50/60Hz | 1phase 110V/220V, 50/60Hz |
| Power | 0.75KW | 1.0KW | 1.5KW |
| Machine size | 500×340×370mm | 500×380×370mm | 540×490×530mm |
| Weight | 40kg | 50kg | 80kg |
