| Brand Name: | HSTECH |
| Model Number: | VS-600WA |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

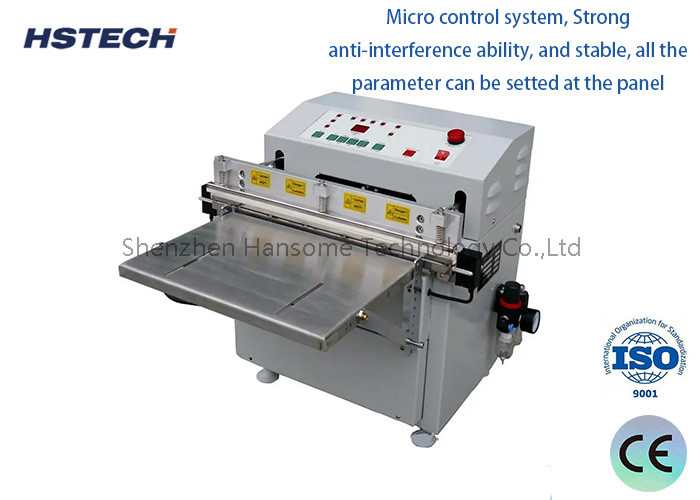

Stainless Steel Vacuum Packing System w/ Unlimited LxWxH Max Packing Size
Introduction
This external vacuum packing machine ,also called floor standing vacuum packing machine, the whole machine is made of painted shell, also can be customized using stainless steel. The platform is adjustable to choose the right height you need, slience wheel for the machine movement.
Features
1, With air pressure supply, also we have another option,can customized the machine to use a internal air compressor, then don't need external air pressure.
2, This unit machine equipped with the self-detection system, the machine will alarm automatically when power on, power off or during the operation.
3, It's a standard vacuum packer, max sealing size is 600mm, working platform size is 400x450mm, especially suitable for packing IC, electronic components, PCB board, optoelectronic parts, hardware products, like LED lamp, PCB, FPC, taped IC, Reel packaged IC, and plastic packaged or trays packaged smart phone screen, tablet screen, touch screen, wire, connectors.
Specification
| Model | VS-600WA |
| Packing capacity | 3-10 bags/min( based on product size) |
| Sealing size | W600*W5~10mm(sealing line width, customized) |
| Max packing size | L(unlimited)*W600*H(unlimited) |
| Machine size | 670*460*1050mm |
| Platform size | 400*450mm(can customized) |
| Power supply | 110V/220V, 50/60Hz |
| Power | 1.5KW |
| Air pressure | 5-8kg(also can customized to no air pressure, make internal air compressor) |
| Ultimate vacuum | -o.1Mpa |
| Weight | 80kg |
Application
V600 external vacuum packaging machine applied in electronic products, such as a semiconductor ,wafer, IC and so on;cloth, cotton wool products, such as sponges and so on, vacuum packaging, in order to reduce packaging volume, saving the cost of logistics, in the light of food, vegetables, seafood, electronic products etc. filling nitrogen gas or other gas, to keep fresh, original, and impact-resistant, machine performance is stable, is electronics factory, circuit board factory, metal factory, toy factory and other factories preferred vacuum equipment .
About Packaging
We have more than 10 years' professional SMT industry experience. With strict production,inspectiondebugging and packaging process, we insist on providing clients with good service pre-sales, in-salesand after-sales services. We have professional QC person to check the quality of the equipment andspare parts. After manufacturing, all equipment will be carefully tested and debugged before shipment.
