| Brand Name: | HSTECH |
| Model Number: | VS-600WB |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

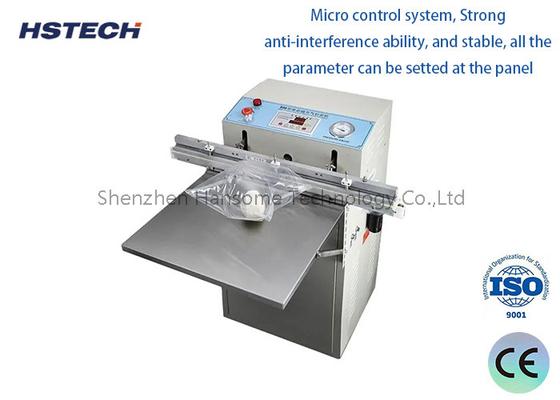

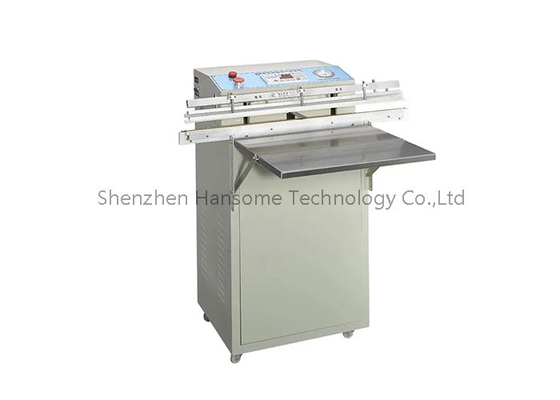

Hot Sealing Vacuum Packing Machine for Reel IC, Optoelectronic Parts, 5-10mm Sealing Width, 1000W
Introduction
This external vacuum packaging machine adopts an upper and lower heat sealing packaging method, and the whole machine is made of a painted shell, which can also be customized using stainless steel. The platform can be adjusted to select the correct height you need for the sliding wheels used for machine movement.
Features
1. Compared with standard packaging machines, this machine adopts a heat sealing type, suitable for high demand and thick bag sealing, such as four layer bags, folding bags, organ bags, foil paper, etc.
2. We have an air pressure supply, and we have another option to customize the machine to use an internal air compressor without the need for external air pressure.
The machines in this unit are equipped with a self-test system, which will automatically sound an alarm when turned on, off, or running.
4. It is a standard vacuum packaging machine with a maximum sealing size of 600mm and a working platform size of 400x450mm. It is particularly suitable for packaging ICs, electronic components, PCB boards, optoelectronic parts, hardware products such as LED lights, PCBs, FPCs, tape ICs, scroll packaging ICs, as well as plastic or tray packaged smartphone screens, tablet screens, touch screens, wires, and connectors.
Specification
| Model | VS-600WB |
| Packing capacity | 3-10 bags/min( based on product size) |
| Sealing size | W600*W5~10mm(sealing line width, customized) |
| Max packing size | L(unlimited)*W600*H(unlimited) |
| Machine size | 670*460*1050mm |
| Platform size | 400*450mm(can customized) |
| Power supply | 110V/220V, 50/60Hz |
| Power | 1.5KW |
| Air pressure | 5-8kg(also can customized to no air pressure, make internal air compressor) |
| Ultimate vacuum | -o.1Mpa |
| Weight | 85kg |
