Adjustable Height PCB Depaneling Equipment for Different Components
Introduction
This machine (HS-300) is a PCB separator with movable blades, designed with upper circular and lower linear blades. Before cutting, the V-shaped groove is placed on the linear blade, and the upper circular blade moves to complete the puncture. The stress is relatively low, and the board does not need to move to protect the components on the board and avoid damage.
Features
1. This machine can be used to cut various boards with V-grooves.
2. Durable blade design, balding can be formed at least twice.
3. The height of the circular blade can be adjusted to accommodate different types of PCBs and components of different heights.

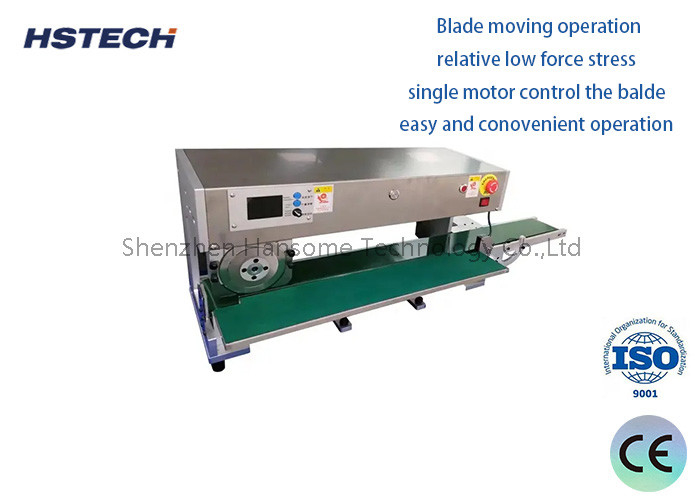

4. Blade movement operation, relatively low force, single motor control blade, simple and convenient operation.

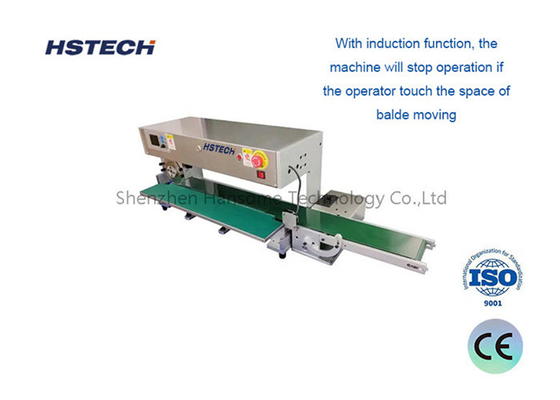

5. Equipped with sensing function, if the operator touches the space where the bald head is moving, the machine will stop running.
6. Safe, with dual protection devices, there is no need to worry about safety production issues.
7. Durable, using high-quality and high-quality material blades.
Specification
| Model | HS-300 | |||
| Voltage | 110V/220V(optional) | |||
| Power | 100W | |||
| Efficient cutting length | 5-360mm | |||
| Blade size | Circular blade φ125*3mm, Linear blade 360*45*6mm | |||
| Blade material | Import high quality high speed steel tool | |||
| Separating speed | 300mm/s | |||
| V-cut thickness | 1/3 of the board | |||
| Separating width | Best 1-200mm | |||
| Machine size | 620*320*450mm | |||
| Weight | 50kg | |||
