Length PCB Separator with Durable Moving Cutter Machine
Introduction

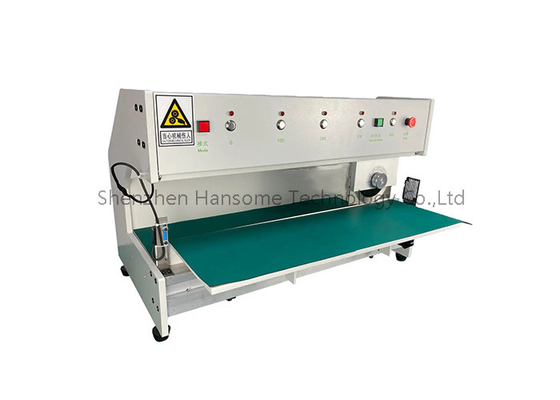

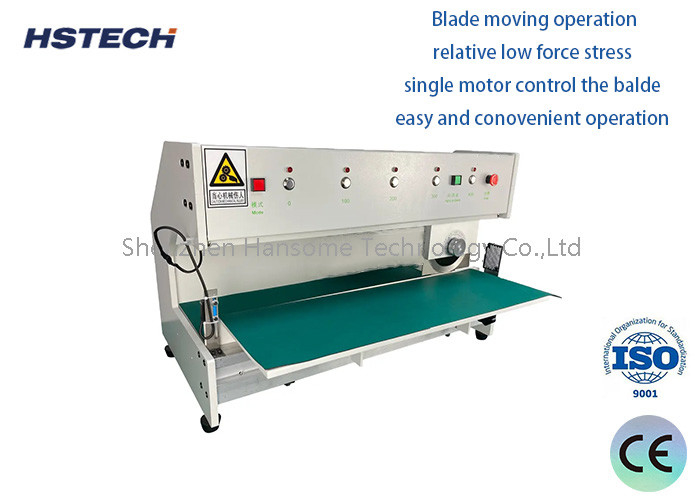

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.
Features
1.Any PC board with V-CUT is appropriate for this machine.
2.The linear slide rail, stress reduction when segmentation, to prevent the solder joint cracking.
3.The circular knife eccentric design, distance between upper and lower cutter can be adjusted , PC board thickness can be adjusted.
4. The machine light, does not occupy space. Easy operation and maintenance.
5. For special specifications of the PC board, can be customized .
7.Conveyor belt is optional , conveniently transfer finished PCB out.
8.Stop block can be used for different PCBs, to raise working efficiency.
Specification
| Model | HS-300 | |||
| Voltage | 110V/220V(optional) | |||
| Power | 100W | |||
| Efficient cutting length | 5-360mm | |||
| Blade size | Circular blade φ125*3mm, Linear blade 360*45*6mm | |||
| Blade material | Import high quality high speed steel tool | |||
| Separating speed | 300mm/s | |||
| V-cut thickness | 1/3 of the board | |||
| Separating width | Best 1-200mm | |||
| Machine size | 620*320*450mm | |||
| Weight | 50kg | |||
Advantages
1.PCBA does not move and the circular knife slides during plate cutting to ensure that the electronic components of the substrate are not damaged due to movement;
2.The sliding speed and slitting stroke of the circular cutter can be flexibly adjusted according to the actual use;
3.According to the depth of V-groove and tool loss, the distance between the upper circular cutter and the lower straight cutter can be accurately adjusted;
4.Driven by stepping motor, it can be self-locking when powered on to realize fine cutting positioning;
5.The infrared light curtain switch is used for safety protection to ensure the safe operation of the machine;
6.The upper and lower blades are made of high-speed steel imported from Japan to improve the service life and slitting effect of the blade;
Application
SMT/EMS, military industry, automotive, semiconductor, medical, communication, 3C, white goods, LED, circuit board, etc.
