| Brand Name: | HSTECH |
| Model Number: | HS-300 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |
Adjustable 400mm Length PCB Separator Cutter Machine with Induction Function
Introduction
This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.
Features

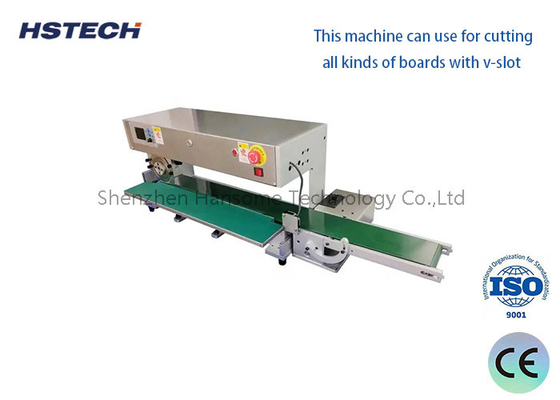

1, This machine can use for cutting all kinds of boards with v-slot.
2, Durable blade design, balde can be shaped at least twice.
3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

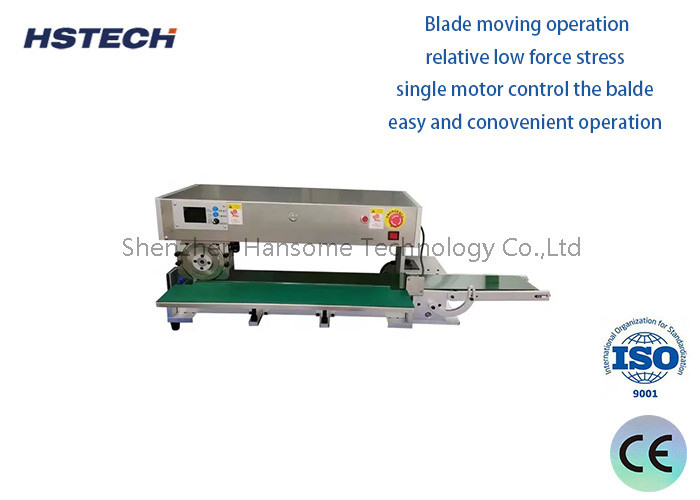

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.
5, With induction function, the machine will stop operation if the operator touch the space of balde moving.
6, Security, with double protective device,no need worry about the security production problem.
7, Durable, using high quality good material blade.
Specification
| Model | HS-300 | |||
| Voltage | 110V/220V(optional) | |||
| Power | 100W | |||
| Efficient cutting length | 5-360mm | |||
| Blade size | Circular blade φ125*3mm, Linear blade 360*45*6mm | |||
| Blade material | Import high quality high speed steel tool | |||
| Separating speed | 300mm/s | |||
| V-cut thickness | 1/3 of the board | |||
| Separating width | Best 1-200mm | |||
| Machine size | 620*320*450mm | |||
| Weight | 50kg | |||
Machine details
1.Display system:LCD display with speed adjust and output zero function.
2.Cutting System:Up round blade, down straight blade, without burrs!
3.Conveyor System:Configure belt conveyor for higher production efficiency.
4.Safety structure:With emergency stop button, enough saft.
