| Brand Name: | HSTECH |
| Model Number: | HS-F306 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

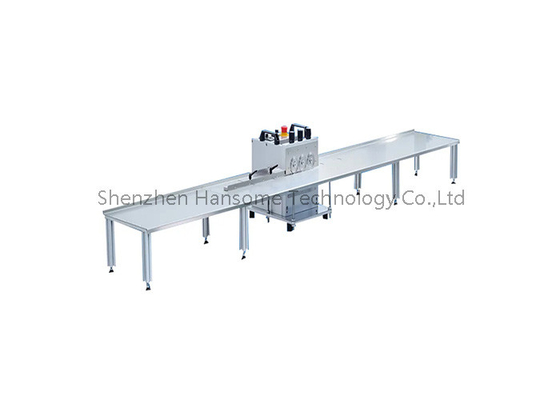

Low Force Stress 3 Groups Blade PCB Depaneling Machine for LED Strip Light
This machine use 3 groups blade cutting, each groups 4 blade, top 2 balde and bottom 2 blade,ultra low cutting force strss, protect the board without deformation, it suitable for hardness aluminum and copper boards.
Features
1. This unit separator is very suitable for LED hard strip cutting, and the entire nail board is separated into small individual strip boards through blades.
2. Three sets of blades are graded and separated to ensure that the cutting surface of the board is smooth and free of burrs, and to protect the board from bending.

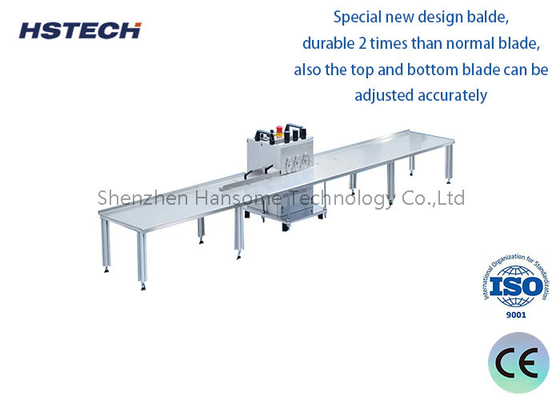

3. The special new design is twice as durable as ordinary blades, and the upper and lower blades can be precisely adjusted.
4. The whole machine has high precision, convenient maintenance, and safe operation.
5. There are two options for platform length: 1.2 meters and 2.4 meters, and the platform can also be fed with grooves for easy collection of separated wooden boards.
6. The platform height is adjustable, with a range of 0~50mm.
Specification
| Model | HS-F300 | |||||||
| Production name | 3 groups high speed strip separating machine | |||||||
| Machine dimension | 390mm×3250mm×330mm | |||||||
| Platform dimension | 1200mm(or 2400mm)×518mm×520mm | |||||||
| Blade dimension | Circular blade ϕ60mm×12mm×3mm | |||||||
| Separating thickness | 0.8~3mm, 1/3 of the board thickness | |||||||
| Voltage | AC220V/110V, 50/60Hz | |||||||
| Air supply | No | |||||||
| Machine power | 60W | |||||||
| Separating speed | 1mm-2000mm/s | |||||||
| Separating length | 100mm-unlimited | |||||||
| Separating width | 4-100mm best, single board width,not whole pin board width | |||||||
| Suitable boards | LED strip board,aluminum and fiber glass boards | |||||||
| Weight |
Around 34kg |
|||||||
