| Brand Name: | HSTECH |
| Model Number: | HS-F306 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

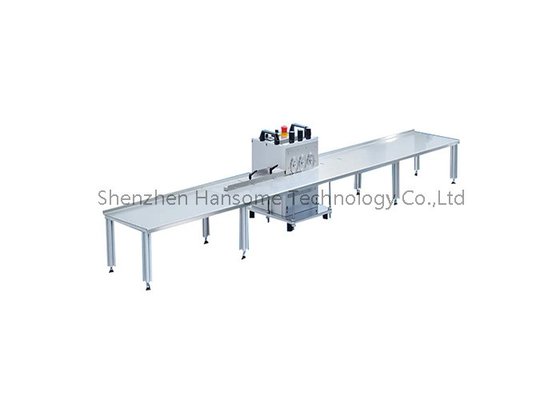

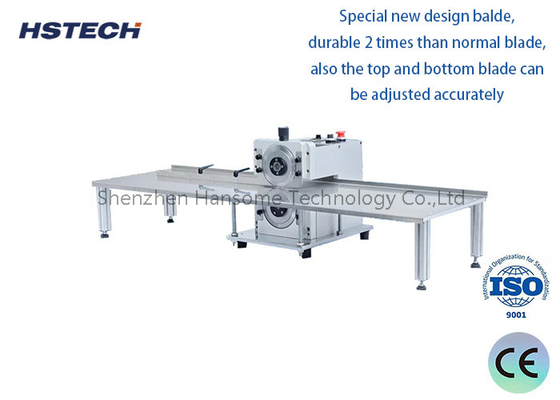

Four Groups Blade LED Strip PCB Depaneling Machine with Platform
This machine use 4 groups blade cutting, each groups 4 blade, top 2 balde and bottom 2 blade,step by step cutting, disperse the cutting force stress to each group blade, greatly lower down the force strss, protect the board without deformation, it suitable for hardness aluminum and copper boards.
Features
Specification
| Model | HS-F360 | |||||||
| Production name | 4 groups high speed strip separating machine | |||||||
| Machine dimension | 390mm×400mm×330mm | |||||||
| Platform dimension | 1200mm(or 2400mm)×426mm×200mm | |||||||
| Blade dimension | Circular blade ϕ60mm×12mm×3mm | |||||||
| Separating thickness | 0.8~3mm, 1/3 of the board thickness | |||||||
| Voltage | AC220V/110V, 50/60Hz | |||||||
| Air supply | No | |||||||
| Machine power | 90W | |||||||
| Separating speed | 1mm-2000mm/s | |||||||
| Separating length | 100mm-unlimited | |||||||
| Separating width | 4-100mm best, single board width,not whole pin board width | |||||||
| Suitable boards | LED strip board,aluminum and fiber glass boards | |||||||
| Weight | Around 40kg | |||||||
About Packaging
