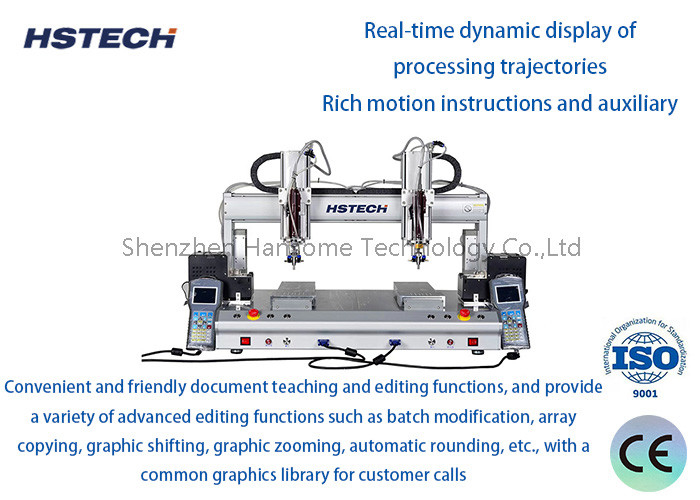

High Precision 6 Axis Auto Screw Locking Machine, Repeat Accuracy ±0.02mm

Brand Name:	HSTECH
Model Number:	HS-SL7331S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

6 Axis Screw Locking Machine

Feeding:

Suction Feeding

Axis:

6 Axis

Screw Feeder:

Double

Screw Driver:

Double

Moving Range:

300*300*100mm/300*300*100mm

Port:

Shenzhen

Oem:

Yes

Packaging Details:

Wooden package, foam inside

Supply Ability:

100pcs per month

Product Description

High Precision 6 Axis Auto Screw Locking Machine, Repeat Accuracy ±0.02mm

Introduction

The screw machine is a 6-axis screw locking machine, just like two 3-axis screw locking machines manufactured in one machine. Therefore, this machine has dual workstations, dual screwdrivers, and dual screw feeders, making it the most efficient machine that can lock two products simultaneously.

Specification

Model	HS-SL7331S
Production name	6Axis Automatic Screw Locking Machine
Moving range(X1/Y1/Z1)	300300100mm
Moving range(X2/Y2/Z2)	300300100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	1092585800mm
Machine weight	85kg

Features

1. Suction feeder, twin screw driver, twin screw feeder.
2. 6-axis operation, with a movement range of 300 * 300 * 100mm, the same as assembling two 3-axis machines in one machine.
3. Can connect to automated production lines to achieve automated production.
4. Support PC graphic image import, can import PLT and G code files.
5. Rich action commands and auxiliary commands.
6. A friendly teaching environment and programming system, as well as support for advanced image copying, batch modification and other editing functions.
7. Real time dynamic display of machining trajectory.
8. A friendly and fast help system that can be called by pressing shift+F1 on any interface.
9. The processing methods support cyclic processing, single processing, automatic processing, single step processing, etc.

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell

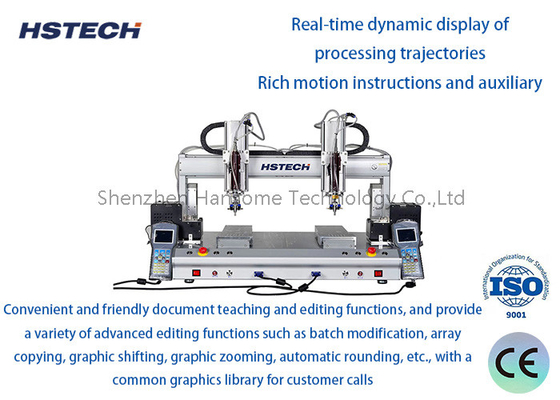

High Precision 6 Axis Auto Screw Locking Machine, Repeat Accuracy ±0.02mm 0

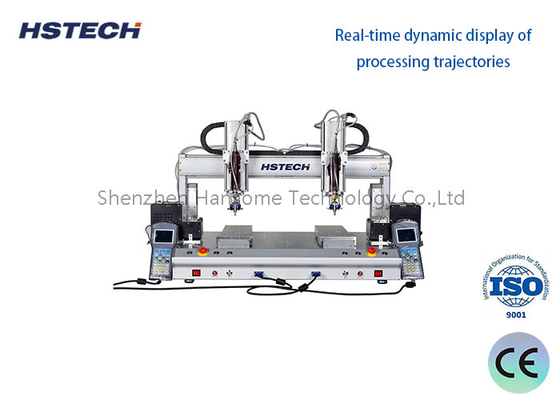

High Precision 6 Axis Auto Screw Locking Machine, Repeat Accuracy ±0.02mm 1
