| Brand Name: | HSTECH |
| Model Number: | HS-F380 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

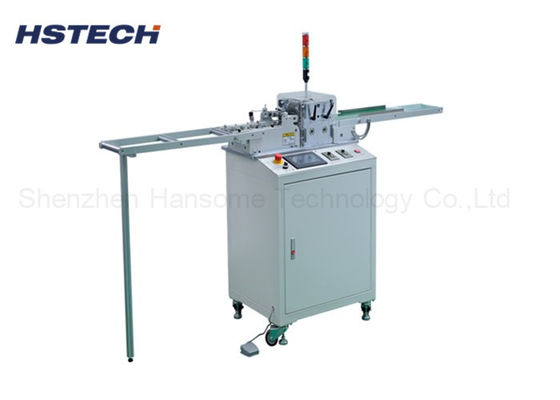

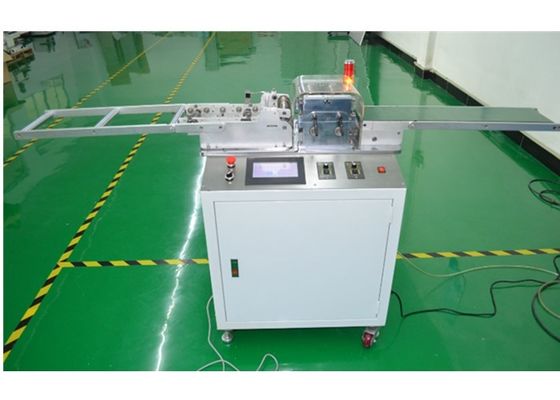

High Speed Steel Blade Multiple Groups LED Strip Light PCB Depaneling Machine
Introduction
This PCB separating machine is designed for separating the LED hard strip boards, it adopt multiple blades cutting at the same time, equipped with the step motor driven, separating the whole PCB panels to small PCB units.
Features
1, Touch screen control, microcomputer system.
2, Multiple groups blades working at the same time, greatly lower the cutting force stress.
3, The machine is designed specially for cutting the LED hard strip PCBs.
4, The platform can be customized based on customers' PCB length, 1.2M,1.5M LED all no problem.
5, Infrared light curtain sensor, high security.
6, Overseas brand high quality high speed steel material blades.
7, Min distance between balde is 3mm, blade thickness is 0.2mm.
8, High efficiency, saving labor, 100,000 pcs products production per day.
Specification
| Model | HS-F385 | |||||||
| Production name | LED hard strip PCB separator | |||||||
| Machine dimension | 2200mm×580mm×1060mm | |||||||
| Blade dimension | Circular blade ϕ60mm×35mm×3mm | |||||||
| Max blades groups | Depends on the V-cut lines | |||||||
| Blade average lifespan | 1,000,000 times (1.2m long , 3mm thick PCB) | |||||||
| Separating thickness | 0.8~3mm, 1/3 of the board thickness | |||||||
| Voltage | AC220V/110V, 50/60Hz | |||||||
| Machine power | 200W | |||||||
| Separating speed | 1mm-2000mm/s | |||||||
| Separating length | 100mm-unlimited | |||||||
| Separating width | 4-100mm best, single board width,not whole pin board width | |||||||
| Suitable boards | LED strip board/LED tube,aluminum baord and fiber glass boards | |||||||
| Weight | Around 160kg | |||||||
