| Brand Name: | HSTECH |
| Model Number: | HS-F306 |
| MOQ: | 1 set |
| Price: | 1000usd |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

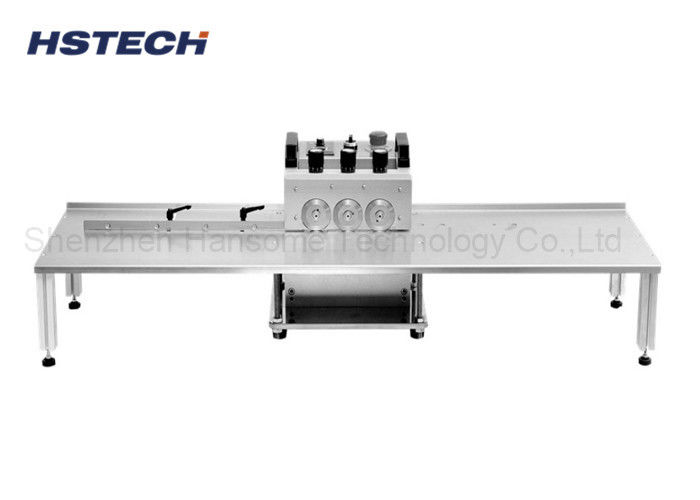

Unlimited Seprating Length Circular Blade Manual LED Hard PCB Cutting Machine
Machine Introduction
This machine is designed for separating the LED hard strip board, it using 4 groups circular blades modular, each group has upper and down blades, operator just manual moving the boards to fit the fixed V-cut groove. It's a efficient separating method, customer can equipped with the stainless steel platform, and can separating two panels at the same time.
Features
1, Multiple groups blades, lower the separating force stress, protect the boards without bent.
2, Upper and down circular can be adjusted freely.
3, The separating blades can be sharped many times.
4, The platform can be customized according to customer's board length.
5, The seprating blade using high quality Germany fabrication high speed steel materials.
6, Easy operation, can depaneling two pcs panels at the same time.
Specification
| Model | HS-F306 | |||||||
| Production name | 4 groups high speed strip separating machine | |||||||
| Machine dimension | 325mm×382mm×350mm | |||||||
| Platform dimension | Customized based on requirement | |||||||
| Blade dimension | Circular blade ϕ60mm×12mm×3mm | |||||||
| Separating speed | Adjustable, 80,120,200,400mm/s | |||||||
| Voltage | AC220V/110V, 50/60Hz | |||||||
| Air supply | No | |||||||
| Machine power | 40W | |||||||
| Separating length | 100mm-unlimited | |||||||
| Separating width | 4-100mm best, single board width,not whole pin board width | |||||||
| Suitable boards | LED strip board,aluminum and fiber glass boards | |||||||
| Weight | 33kg | |||||||
